Product Summary

The AD8574ARUZ is a single, dual, and quad amplifier, respectively, featuring rail-to-rail input and output swings. It has ultralow offset, drift, and bias current. It is guaranteed to operate from 2.7 V to 5 V single supply. The applications of the AD8574ARUZ include: (1)Temperature sensors; (2)Pressure sensors; (3)Precision current sensing; (4)Strain gage amplifiers; (5)Medical instrumentation; (6)Thermocouple amplifiers.

Parametrics

AD8574ARUZ absolute maxing ratings: (1)Supply Voltage: 6V; (2)Input Voltage: GND to VS + 0.3V; (3)Differential Input Voltage: ±5.0V; (4)ESD (Human Body Model): 2000 V; (5)Output Short-Circuit Duration to GND: Indefinite; (6)Storage Temperature Range RM, RU, and R Packages: -65℃ to +150℃; (7)Operating Temperature Range: -40℃ to +125℃; (8)Junction Temperature Range RM, RU, and R Packages: -65℃ to +150℃; (9)Lead Temperature Range (Soldering, 60 sec): 300℃.

Features

AD8574ARUZ features: (1)Low offset voltage: 1 μV; (2)Input offset drift: 0.005 μV/℃; (3)Rail-to-rail input and output swing; (4)5 V/2.7 V single-supply operation; (5)High gain, CMRR, PSRR: 130 dB; (6)Ultralow input bias current: 20 pA; (7)Low supply current: 750 μA/op amp; (8)Overload recovery time: 50 μs; (9)No external capacitors required.

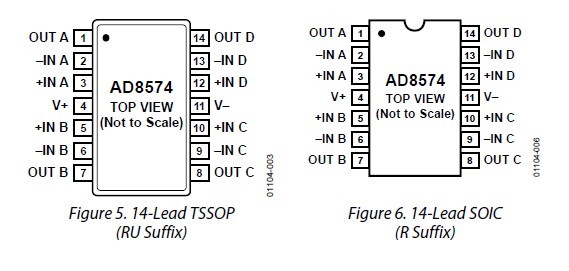

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

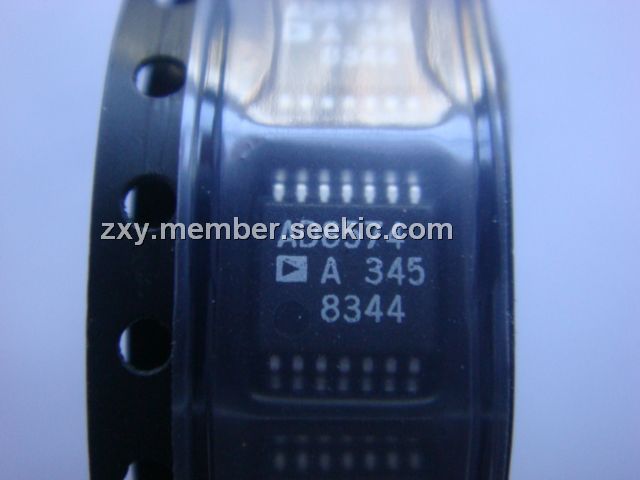

AD8574ARUZ
AD8574ARUZ

IC OPAMP CHOPPER R-R 14TSSOP
Data Sheet
0-1: $4.31
1-10: $3.88
10-100: $3.19
100-250: $2.93
250-500: $2.67
500-1000: $2.33
1000-2500: $2.30
AD8574ARUZ-REEL
AD8574ARUZ-REEL

IC OPAMP CHOPPER R-R 14TSSOP
Data Sheet
0-2500: $2.30
