Product Summary

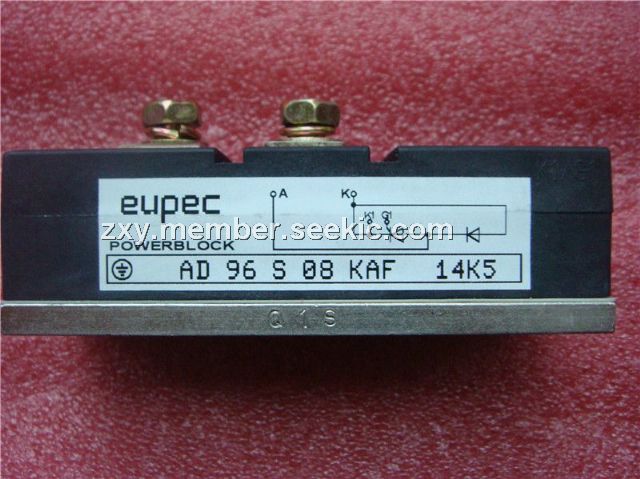

The AD96S08KAF is a Fast Asymmetric Thyristor.

Parametrics

AD96S08KAF absolute maximum ratings: (1)VRRM tp=1μs: 15V; (2)ITRMSM: 200A; (3)ITSM 10ms: 2350A; (4)ITAVM/tc: 95/85 A/℃; (5)V (TO): 1.3V; (6)rT: 2.15mΩ; (7)tvj max: 125℃.

Features

AD96S08KAF features: (1)Baseplate = 34mm; (2)(di/dt)cr: 400A/μs; (3)tp: D≤15μs; (4) Outline: 120.

Diagrams

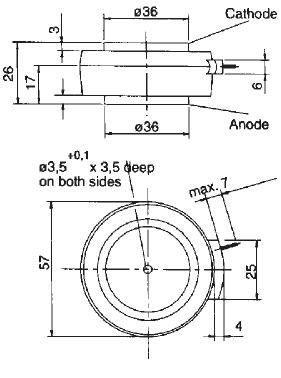

AD96S08KAF dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD96S08KAF
AD96S08KAF
Infineon Technologies
Discrete Semiconductor Modules ASYMMETRIC FAST
Data Sheet
0-3: $270.33
