Product Summary
The ADC121S101CIMFX is a low-power, single channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC121S101CIMFX is fully specified over a sample rate range of 500ksps to 1Msps. The converter is based upon successive approximation register architecture with an internal track-and-hold circuit. The applications of the ADC121S101CIMFX include Portable Systems, Remote Data Acquisition, Instrumentation and Control Systems.
Parametrics
ADC121S101CIMFX absolute maximum ratings: (1)Analog Supply Voltage VA: -0.3V to 6.5V; (2)Voltage on Any Digital Pin to GND: -0.3V to 6.5V; (3)Voltage on Any Analog Pin to GND: -0.3V to (VA +0.3V); (4)Input Current at Any Pin: ±10mA; (5)Package Input Current: ±20mA; (6)Power Consumption at TA = 25℃; (7)ESD Susceptibility Human Body Model: 3500V; (8)Machine Model: 300V; (9)Junction Temperature: +150℃; (10)Storage Temperature: -65℃ to +150℃.
Features
ADC121S101CIMFX absolute maximum ratings: (1)Analog Supply Voltage VA: -0.3V to 6.5V; (2)Voltage on Any Digital Pin to GND: -0.3V to 6.5V; (3)Voltage on Any Analog Pin to GND: -0.3V to (VA +0.3V); (4)Input Current at Any Pin: ±10mA; (5)Package Input Current: ±20mA; (6)Power Consumption at TA = 25℃; (7)ESD Susceptibility Human Body Model: 3500V; (8)Machine Model: 300V; (9)Junction Temperature: +150℃; (10)Storage Temperature: -65℃ to +150℃.

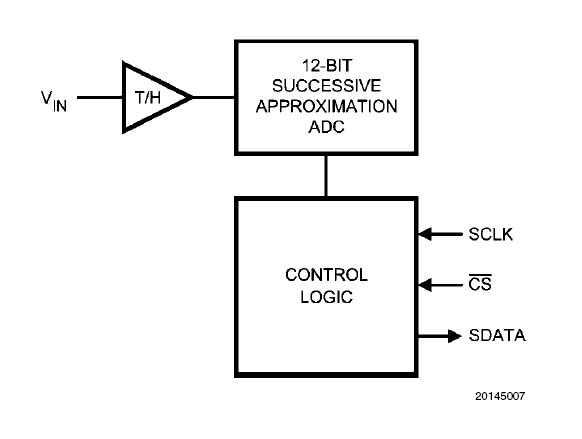

Diagrams
