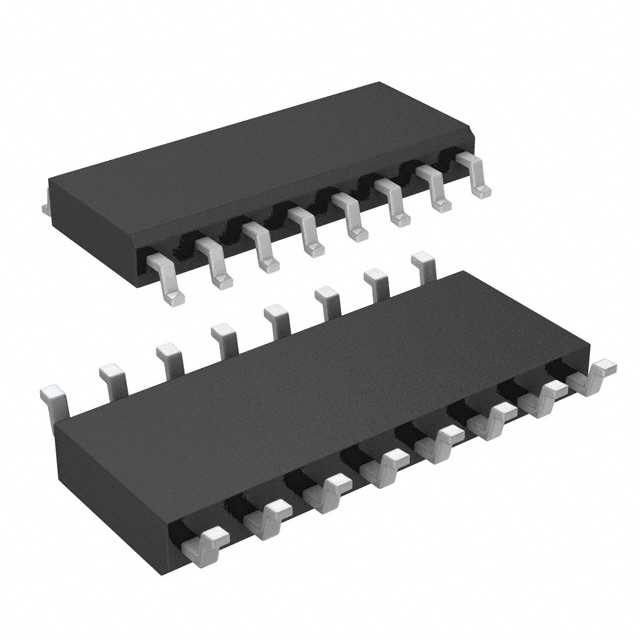

AM26C32ID

Product Summary

The AM26C32ID is a quadruple differential line receiver for balanced or unbalanced digital data transmission. The enable function is common to all four receivers and offers a choice of active-high or active-low input. The 3-state outputs permit connection directly to a bus-organized system. Fail-safe design specifies that if the inputs are open, the outputs always are high. The AM26C32ID is manufactured using a BiCMOS process, which is a combination of bipolar and CMOS transistors. The AM26C32ID provides the high voltage and current of bipolar with the low power of CMOS to reduce the power consumption to about one-fifth that of the standard AM26C32ID, while maintaining ac and dc performance. The AM26C32ID is characterized for operation from 0℃ to 70℃. The AM26C32ID is characterized for operation from -40℃ to 85℃.

Parametrics

AM26C32ID absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage range, VI A or B inputs: 11 V to 14 V; (3)Input voltage range, VI G or G inputs: .0.5 V to VCC + 0.5 V; (4)Differential input voltage range, VID: 14 V to 14 V; (5)Output voltage range, VO: 0.5 V to VCC + 0.5 V; (6)Output current, IO:. ±25 mA; (7)Package thermal impedance, θJA): D package 73℃/W, N package 67℃/W, NS package 64℃/W, PW package 108℃/W; (8)Operating virtual junction temperature, TJ: 150℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (10)Storage temperature range, Tstg: 65℃ to 150℃.

Features

AM26C32ID features: (1)Meets or Exceeds the Requirements of ANSI TIA/EIA-422-B, TIA/EIA-423-B, and ITU Recommendation V.10 and V.11; (2)Low Power, ICC = 10 mA Typ; (3)±7-V Common-Mode Range With ±200-mV Sensitivity; (4)Input Hysteresis: 60 mV Typ; (5)tpd = 17 ns Typ; (6)Operates From a Single 5-V Supply; (7)3-State Outputs; (8)Input Fail-Safe Circuitry; (9)Improved Replacements for AM26LS32; (10)Available in Q-Temp Automotive; (11)High Reliability Automotive Applications; (12)Configuration Control/Print Support; (13)Qualification to Automotive Standards.

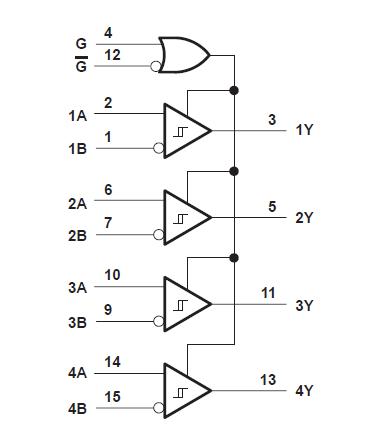

Diagrams
