Product Summary

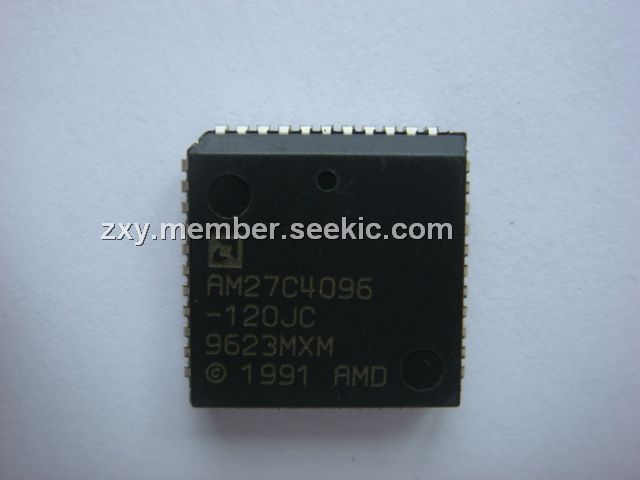

The AM27C4096-120JC is a 4 Mbit, ultraviolet erasable programmable read-only memory. It is organized as 256 Kwords, operates from a single +5 V supply, has a static standby mode, and features fast single address location programming. The AM27C4096-120JC is ideal for use in 16-bit microprocessor systems. The device is available in windowed ceramic DIP packages, and plastic one time programmable (OTP) PDIP and PLCC packages.
Parametrics
AM27C4096-120JC absolute maximum ratings: (1)Storage Temperature: OTP Products: –65℃ to +125℃, All Other Products: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to VSS: All pins except A9, VPP, VCC: –0.6 V to VCC + 0.6 V; (4)A9 and VPP: –0.6 V to 13.5 V; (5)VCC: –0.6 V to 7.0 V.
Features
AM27C4096-120JC features: (1)Fast access time: Speed options as fast as 90 ns; (2)Low power consumption: 100 μA maximum CMOS standby current; (3)JEDEC-approved pinout: Plug-in upgrade of 1 Mbit and 2 Mbit EPROMs, 40-pin DIP/PDIP, 44-pin PLCC; (4)Single +5 V power supply; (5)±10% power supply tolerance standard; (6)100% Flashrite programming: Typical programming time of 32 seconds; (7)Latch-up protected to 100 mA from –1 V to VCC + 1 V; (8)High noise immunity.

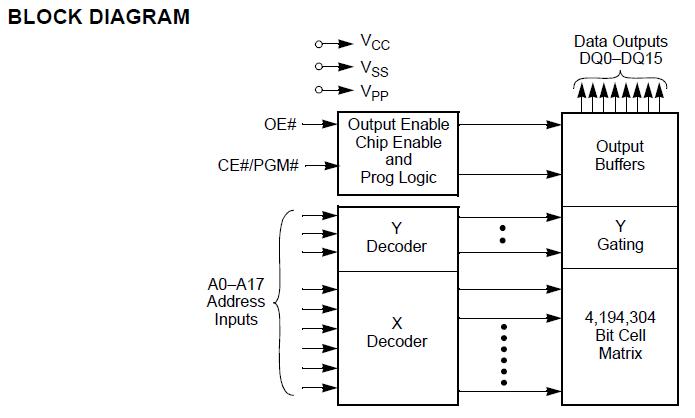

Diagrams
 |
