Product Summary

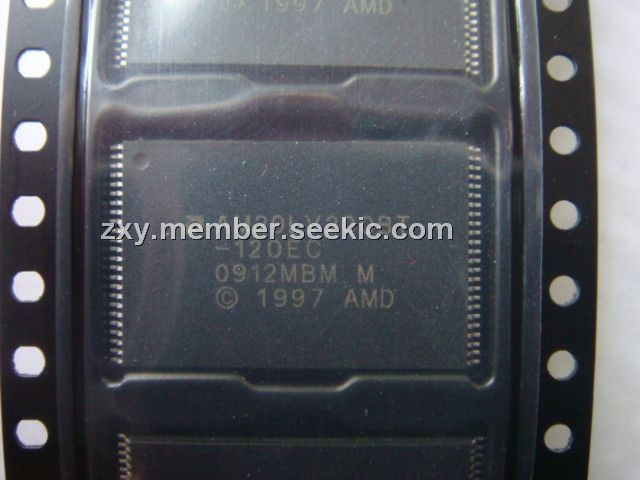

The AM29LV200BT-120EC is a 2 Mbit, 3.0 volt-only Flash memory organized as 262,144 bytes or 131,072 words. The device is offered in 44-pin SO and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. This device AM29LV200BT-120EC is designed to be programmed insystem using only a single 3.0 volt VCC supply. No VPP is required for write or erase operations. The AM29LV200BT-120EC can also be programmed in standard EPROM programmers.
Parametrics
AM29LV200BT-120EC absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65 to +150; (2)Ambient Temperature with Power Applied: –65 to +125℃; (3)Voltage with Respect to Ground, VCC:–0.5 V to +4.0 V; A9, OE#, and RESET#: –0.5 V to +12.5 V; All other pins: –0.5 V to VCC+0.5 V; (4)Output Short Circuit Current: 200 mA.
Features
AM29LV200BT-120EC features: (1)Single power supply operation; (2)Manufactured on 0.35 mm process technology; (3)High performance; (4)Ultra low power consumption (typical values at 5 MHz); (5)Flexible sector architecture; (6)Unlock Bypass Program Command; (7)Top or bottom boot block configurations available; (8)Embedded Algorithms; (9)Minimum 1,000,000 write cycle guarantee per sector; (10)Compatibility with JEDEC standards; (11)Data# Polling and toggle bits; (12) Ready/Busy# pin (RY/BY#); (13)Erase Suspend/Erase Resume; (14)Hardware reset pin (RESET#).
