Product Summary

The AM80A-300L-022F60 is an Astec Integrated Power.

Parametrics

AM80A-300L-022F60 absolute maximum ratings: (1)Input Range: 18 - 36V or 36 - 72 VDC or 90 - 200 VDC or 180 - 400 VDC; (2)Efficiency: 84% typical (5V @ 40A), 87% typical (12V @ 18A); (3)Output; (4)Load Regulation: 0.1% typical down to no load; (5)Line Regulation: 0.02% typical; (6)Noise/Ripple: 50 mV typical (output below 5V), 1% typical (output 5V and over); (7)Remote sense: Up to 0.5V; (8)Output Voltage Adjust Range: ±20% of nominal; (9)Transient Response: 3% typical deviation with 300μs recovery (25-75% full load); (10)Current Share Accuracy: 3% typical; (11)Overvoltage Protection: 115% Vo (nominal); (12)Current Limit: 110% Io maximum.

Features

AM80A-300L-022F60 features: (1)1MHz Fixed frequency; (2)100℃ Baseplate operating temperature (no derating); (3)Low output ripple and noise; (4)Excellent transient response; (5)Safety isolated low voltage interface with ALP linear control; (6)High reliability - over 1 million hours MTBF; (7)Wide input voltage range; (8)Parallelable with accurate current sharing; (9)Current and temperature monitoring outputs.

Diagrams

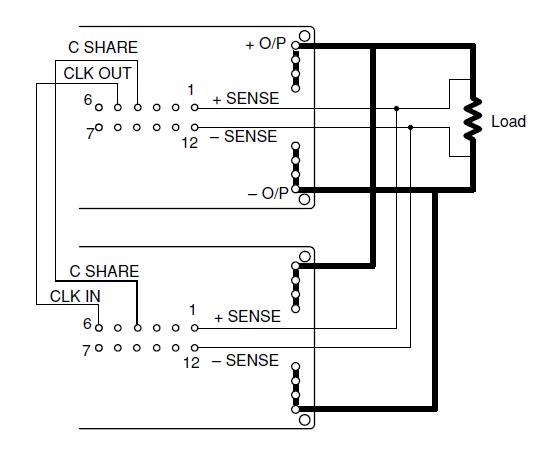

AM80A-300L-022F60 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

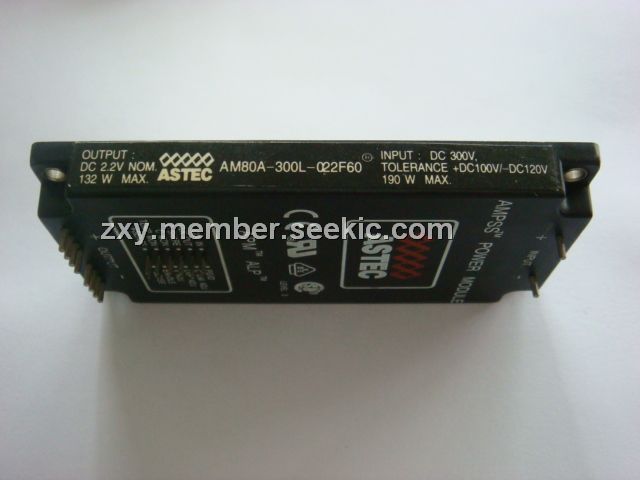

AM80A-300L-022F60
AM80A-300L-022F60


CONV DC-DC 240W 300VIN 2.2V 60A

Data Sheet

Negotiable
