Product Summary

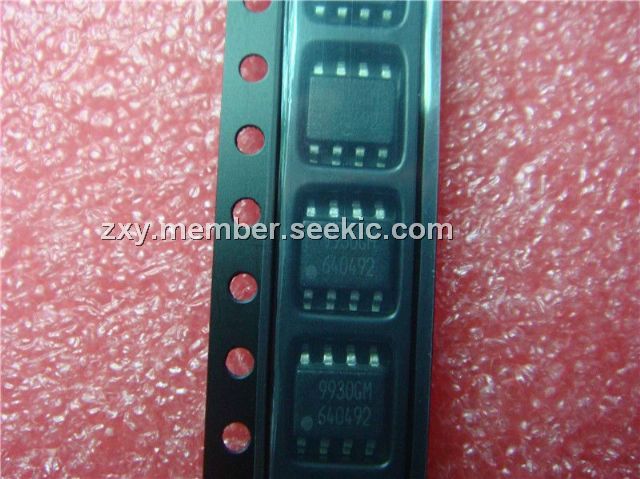

The AP9930 is a Power MOSFET. It provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost effectiveness. The SO-8 package is universally preferred for all commercial industrial surface mount applications and suited for low voltage applications such as DC/DC converters.
Parametrics
AP9930 absolute maximum ratings: (1)VDS Drain-Source Voltage: 30V; (2)VGS Gate-Source Voltage: ±25V; (3)ID@TA=25℃ Continuous Drain Current: 6.3A; (4)ID@TA=70℃ Continuous Drain Current: 4.2A; (5)IDM Pulsed Drain Current: 20A; (6)PD@TA=25℃ Total Power Dissipation: 2.0W; (7)Linear Derating Factor: 0.016 W/℃; (8)TSTG Storage Temperature Range: -55℃ to 150℃; (9)TJ Operating Junction Temperature Range: -55℃ to 150℃.
Features
AP9930 features: (1) Simple Drive Requirement; (2) Low On-resistance; (3) Full Bridge Application on LCD Monitor Inverter.

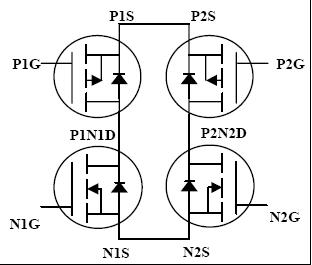

Diagrams
 |
