Product Summary

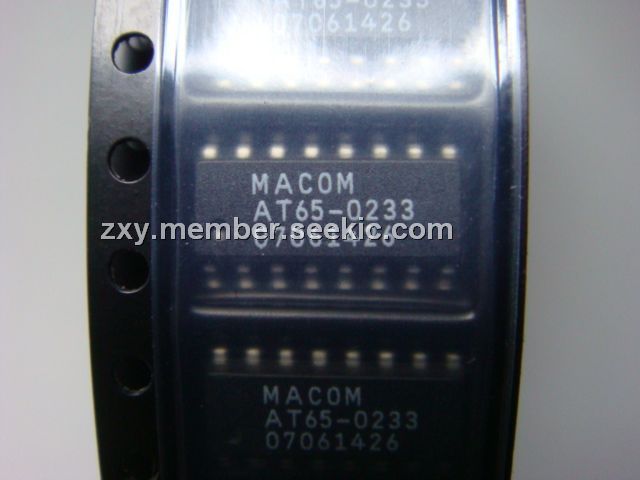

The AT65-0233 is a GaAs FET 4-bit digital attenuator with a 2.0 dB minimum step size and a 30 dB total attenuation range. This device is in a SOIC-16 plastic surface mount package. The AT65-0233 is ideally suited for use where accuracy, fast speed, very low power consumption and low costs are required. Typical applications include dynamic range setting in precision receiver circuits and other gain/leveling control circuits.
Parametrics
AT65-0233 absolute maxing ratings: (1)Max. Input Power 0.05 GHz: +27 dBm; 0.5 - 3.0 GHz: +34 dBm; (2)VCC: -0.5V ≤ VCC ≤ +7.0V; (3)VEE: -8.5V ≤ VEE ≤ +0.5V; (4)VCC - VEE: -0.5V ≤ VCC - VEE ≤ 14.5V; (5)Vin: -0.5V ≤ Vin ≤ VCC + 0.5V; (6)Operating Temperature: -40℃ to +85℃; (7)Storage Temperature: -65℃ to +125℃.
Features
AT65-0233 features: (1)Attenuation: 2.0 dB steps to 30 dB; (2)Low DC Power Consumption; (3)Integral TTL Driver; (4)50 Ohm Impedance; (5)Temperature Stability: ±0.18 dB from -55℃ to +85℃ Typ.; (6)SOIC-16 Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT65-0233 |
Other |
|
Data Sheet |
Negotiable |
|
||||
