Product Summary

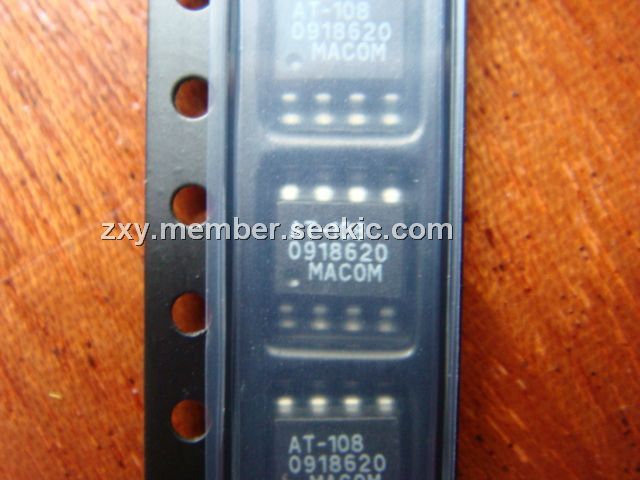

The AT-108TR is a Voltage Variable Absorptive Attenuator. The AT-108TR is a GaAs MESFET MMIC voltage variable absorptive attenuator in a low cost SOIC-8 surface mount plastic package. The AT-108TR is ideally suited for use where linear attenuation, fine tuning and very low power consumption are required. Typical applications include radio, cellular, GPS equipment and automatic gain/level control circuits. The AT-108TR is fabricated with a monolithic GaAs MMIC using a mature 1-micron process. The process features full chip passivation for increased performance and reliability.
Parametrics
AT-108TR absolute maximum ratings: (1)Input Power +21 dBm; (2)Supply Voltage VCC -1 V < VCC < +8 V; (3)Control Voltage VC; (4)-1 V < VC < VCC +0.5 V; (5)Operating Temperature -40℃ to +85℃; (6)Storage Temperature -65℃ to +150℃.
Features
AT-108TR features: (1)Single Positive Voltage Control: 0 to +5 Volts; (2)40 dB Attenuation Range at 900 MHz; (3)2 dB Linearity from BSL; (4)Low DC Power Consumption; (5)SOIC-8 Plastic Package; (6)Tape and Reel Packaging Available.

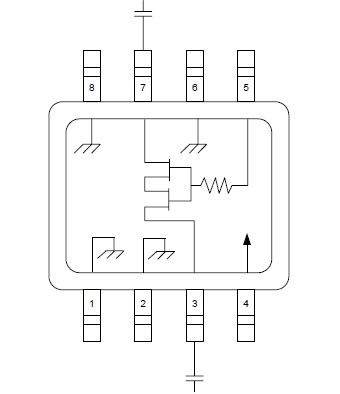

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT-108TR |
M/A-COM Technology Solutions |
Active Attenuator .5-3.0GHz 40dB IL 3.5dB max. |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
|
AT-10 |
Cooper Bussmann |
Fuses BLADE FUSE |
Data Sheet |
|
|
||||||||||||||
 |

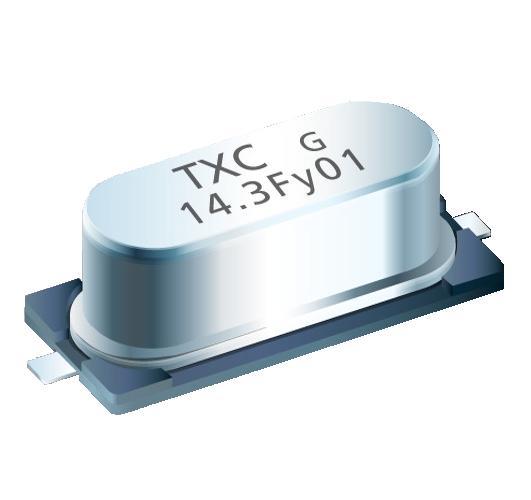

AT-10.000MAGI-T |
