Product Summary

The B1100LBT is a 1.0A high voltage schottky barrier rectifier.

Parametrics

B1100LBT absolute maxing ratings: (1)RMS Reverse Voltage VR(RMS): 70V; (2)Average Rectified Output Current @ TT = 120℃ IO: 1.0A; @ TT = 100℃ IO: 2.0A; (3)Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave Superimposed on Rated Load; (4)(JEDEC Method)IFSM: 50A; (5)Forward Voltage @ IF = 1.0A, TA = 25℃ VFM: 0.75V; (6)Peak Reverse Current @ TA = 25℃ IRM: 0.5mA; at Rated DC Blocking Voltage @ TA = 100℃ IRM: 5.0mA; (7)Typical Junction Capacitance Cj: 100pF; (8)Typical Thermal Resistance Junction to Terminal RθJT: 22K/W; (9)Operating and Storage Temperature Range Tj, TSTG: -65 to +150℃.

Features

B1100LBT features: (1)Schottky Barrier Chip; (2)Guard Ring Die Construction for Transient Protection; (3)Ideally Suited for Automatic Assembly; (4)Low Power Loss, High Efficiency; (5)Surge Overload Rating to 50A Peak; (6)For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application; (7)High Temperature Soldering: 260℃/10 Second at Terminal; (8)Plastic Material: UL Flammability Classification Rating 94V-0.

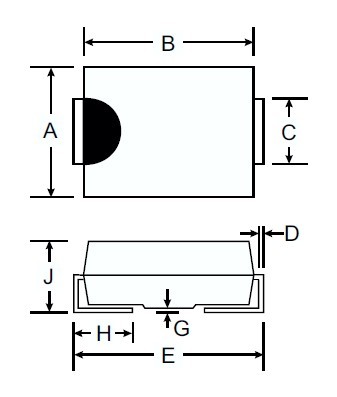

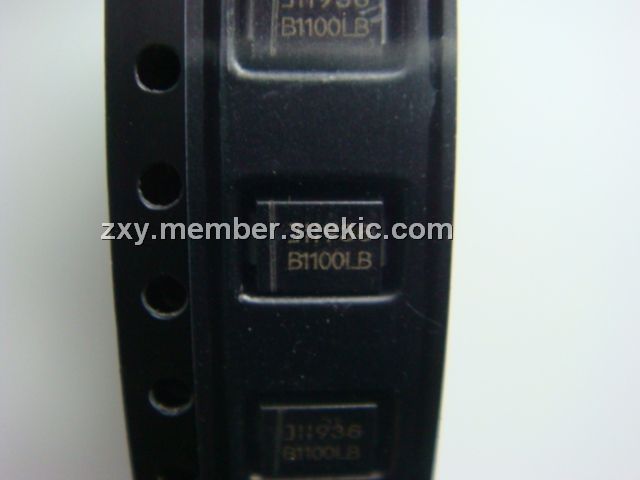

Diagrams

B1100-13-F
B1100-13-F
Diodes Inc.
Schottky (Diodes & Rectifiers) 100V 1A
Data Sheet
