Product Summary

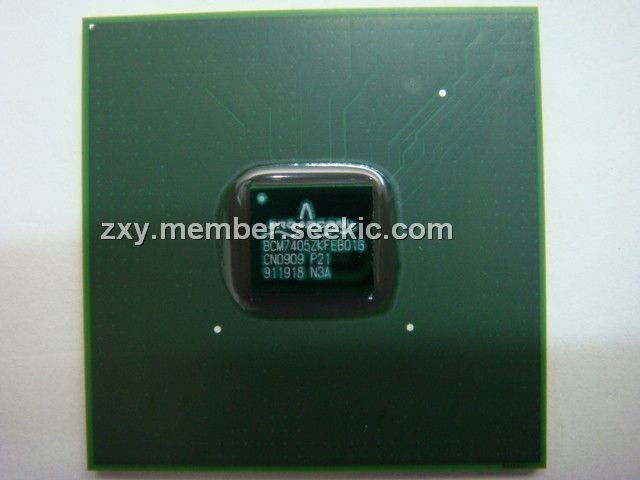

The BCM7405ZKFEB01G is a high-definition satellite, cable, and IP set-top box DVR solution offering integrated AVC (H.264/MPEG-4 Part 10), MPEG-2, and VC-1 video decoding technology. The BCM7405ZKFEB01G combines a data transport processor, high-definition AVC/MPEG-2/VC-1 video decoder, advanced-audio decoder, 2D graphics processing, high-quality video scaling and motion adaptive deinterlacing, six video DACs, stereo high-fidelity audio DACs, a MIPS32/MIPS16e. Class CPU, and a peripheral control unit providing a variety of set-top box control functions.

Parametrics

BCM7405ZKFEB01G absolute maximum ratings: (1) Unit Type: piece; (2) Package Weight: 0.03kg (0.066lb.); (3) Package Size: 6cm×2cm×2cm (2.36in×0.79in×0.79in).

Features

BCM7405ZKFEB01G features: (1)Advanced HD AVC/MPEG-2/VC-1 decoder; (2)Advanced audio processor supporting; (3)Advanced 2D-effects graphic engine; (4)Digital noise reduction (DNR); (5)Motion-adaptive deinterlacer with reverse 3:2/2:2 pulldown; (6)Letterbox detection; (7)Multiple simultaneous, independent DVR channels; (8)Open Cable ready with on-chip MPOD support; (9)300-MHz MIPS32?16e class processor; (10)64-bit DDR DRAM controller; (11)SATA I/F for DVR applications; (12)HD analog video encoder with simultaneous SD outputs; (13)HDMI 1.1/DVI 1.0 Mac and PHY with HDCP 1.1; (14)Broadcom security processor; (15)AES/1DES/3DES/CSS/CPRM/DTCP copy protection; (16)MPEG-2/DIRECTV/DVB/ARIB data transport demux with 1DES/3DES/DVB/Multi2/AES descramblers; (17)V.92-capable soft modem with integrated SiLab Si305x system side device; (18)3.3V 33-MHz PCI 2.2; (19)Dual USB 2.0 host controller with dual-port transceiver; (20)Additional independent USB 1.1 host controller; (21)Serial ATA interface; (22)Ethernet Mac and PHY; (23)UHF remote control receiver; (24)Dual smart card support.

Diagrams

BCM7405ZKFEB01G block diagram
