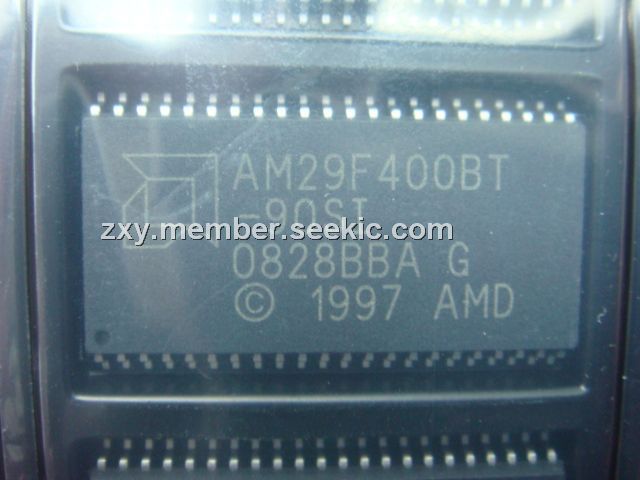

AM29F400BT-90SI

Product Summary

The AM29F400BT-90SI is a 4 Mbit, 5.0 volt-only Flash memory organized as 524,288 bytes or 262,144 words. The device is offered in 44-pin SO and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. The AM29F400BT-90SI is designed to be programmed insystem with the standard system 5.0 volt VCC supply. A 12.0 V VPP is not required for write or erase operations. The AM29F400BT-90SI can also be programmed in standard EPROM programmers. This device is manufactured using 0.35 μm process technology, and offers all the features and benefits of the Am29F400, which was manufactured using 0.5 μm process technology. The standard device offers access times of 55, 60, 70, 90, 120, and 150 ns, allowing high speed microprocessors to operate without wait states. To eliminate bus contention the device has separate chip enable (CE#), write enable (WE#) and output enable (OE#) controls.

Parametrics

AM29F400BT-90SI absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground VCC: –2.0 V to +7.0 V; A9, OE#, and RESET#: –2.0 V to +12.5 V; All other pins: –0.5 V to +7.0 V; (4)Output Short Circuit Current: 200 mA.

Features

AM29F400BT-90SI features: (1)Single power supply operation; (2)5.0 volt-only operation for read, erase, and program operations; (3)Minimizes system level requirements; (4)Manufactured on 0.35 μm process technology; (5)Compatible with 0.5 μm Am29F400 device; (6)High performance; (7)Access times as fast as 55 ns; (8)Low power consumption (typical values at 5 MHz); (9)1 μA standby mode current; (10)20 mA read current (byte mode); (11)28 mA read current (word mode); (12)30 mA program/erase current; (13)Top or bottom boot block configurations available; (14)Minimum 1,000,000 program/erase cycles per sector guaranteed; (15)Package option: 48-pin TSOP; 44-pin SO; (16)Compatibility with JEDEC standards; (17)Pinout and software compatible with singlepower-supply Flash; Superior inadvertent write protection; (18)Hardware method to reset the device to reading array data.

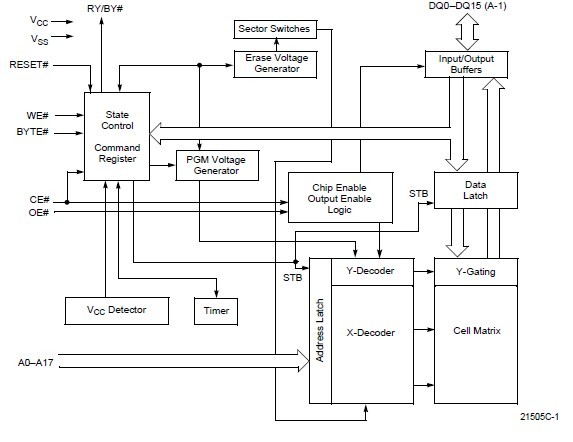

Diagrams
