Product Summary

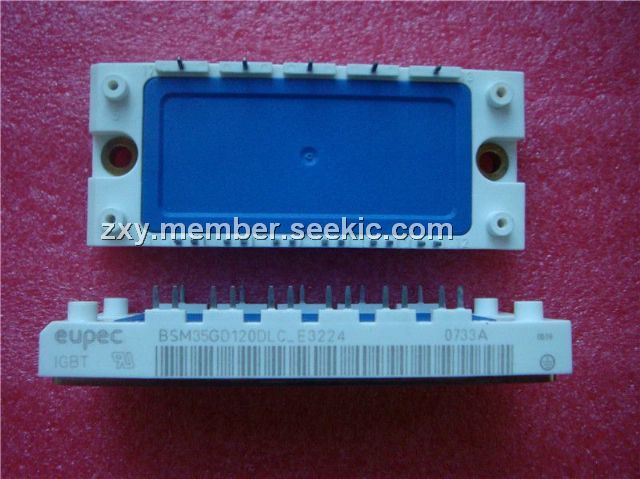

The BSM35GD120DLC-E3224 is a kind of IGBT Module.

Parametrics

BSM35GD120DLC-E3224 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)DC-collector current: TC = 80 ℃, IC,nom: 35A; TC = 25 ℃, IC: 70A; (3)repetitive peak collector current, tP = 1 ms, TC = 80℃, ICRM: 70A; (4)total power dissipation, TC=25℃, Transistor, Ptot: 280W; (5)gate-emitter peak voltage, VGES: +/- 20V; (6)DC forward current, IF: 35A; (7)repetitive peak forw. current, tP = 1 ms, IFRM: 70A; (8)insulation test voltage, RMS, f = 50 Hz, t = 1 min, VISOL: 25 kV.

Features

BSM35GD120DLC-E3224 features: (1)internal insulation: AL2O3; (2)CTI, comperative tracking index: 225; (3)mounting torque, M1: 3 Nm min, 6 Nm max; (4)weight, G: 180g.

Diagrams

BSM35GD120DLC-E3224 circuit diagram
