Product Summary
The CGS74CT2524M is a minimum skew clock driver. It is designed for Clock Generation and Support (CGS) applications operating at high frequencies. The CGS74CT2524M guarantees minimum output skew across the outputs of a given device. Skew parameters are also provided as a means to measure duty cycle requirements as those found in high speed clocking systems. The CGS74CT2524M is a minimum skew clock driver with one input driving four outputs, specifically designed for signal generation and clock distribution applications.
Parametrics
CGS74CT2524M absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to 7.0V; (2)DC Input Voltage Diode Current (IIK): V = -0.5V -20 mA, V = VCC -0.5V +20 mA; (3)DC Input Voltage (VI): -0.5V to (VCC +0.5V); (4)DC Output Diode (Current) (IO): V = -0.5V -20 mA, V = VCC -0.5V -20 mA; (5)DC Output Voltage (VO): -0.5V to (VCC +0.5V); (6)DC Output Source or Sink Current (IO): ±50 mA; (7)DC VCC or Ground Current per Output Pin (ICC or IGND): ±50 mA; (8)Storage Temperature (TSTG): -65℃ to +150℃.
Features
CGS74CT2524M features: (1)Guaranteed 300 ps pin-to-pin skew (tOSHL and tOSLH); (2)Implemented on National’s FACTTM family process; (3)1 input to 4 outputs low skew clock distribution; (4)Symmetric output current drive: 24 mA IOH/IOL; (5)Industrial temperature of -40℃ to +85℃; (6)8-pin SOIC package; (7)Low dynamic power consumption above 20 MHz; (8)Guaranteed 2 kV ESD protection.

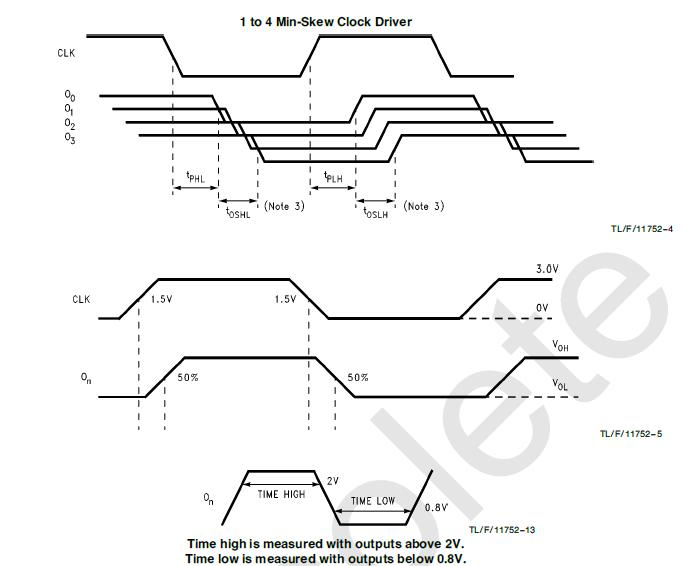

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CGS74CT2524M |
|
IC CLK BUFFER 1:4 100MHZ 8-SOIC |
Data Sheet |
Negotiable |
|
||||
|
CGS74CT2524MX |
|
IC CLK BUFFER 1:4 100MHZ 8-SOIC |
Data Sheet |
Negotiable |
|
||||
