Product Summary
The CGS74LCT2524M is a 1 to 4 Minimum Skew (300 ps) 3V Clock Driver. It is designed for Clock Generation and Support (CGS) applications operating at low voltage, high frequencies. The CGS74LCT2524M guarantees minimum output skew across the outputs of a given device.
Parametrics
CGS74LCT2524M absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to 7.0V; (2)DC Input Voltage Diode Current (IIK) V = -0.5V -20 mA, V = VCC + 0.5V +20 mA; (3)DC Input Voltage (VI): -0.5V to VCC +0.5V; (4)DC Output Diode Current (IO) V = -0.5V -20 mA, V = VCC + 0.5V +20 mA; (5)DC Output Voltage (VO): -0.5V to VCC +0.5V; (6)DC Output Source or Sink Current (IO): ±50 mA; (7)DC VCC or Ground Current per Output Pin (ICC or IGND): ±50 mA; (8)Storage Temperature (TSTG): -65℃ to +150℃.
Features
CGS74LCT2524M features: (1)Ideal for low power/low noise high speed applications; (2)Guaranteed: 300 ps pin-to-pin skew (tOSHL and tOSLH); (3)Implemented on National’s FACT. family process; (4)1 input to 4 outputs low skew clock distribution; (5)Symmetric output current drive: 12 mA IOH/IOL; (6)Industrial temperature of -40℃ to +85℃; (7)8-pin SOIC package; (8)Low dynamic power consumption above 20 MHz; (9)Guaranteed 2 kV ESD protectio.

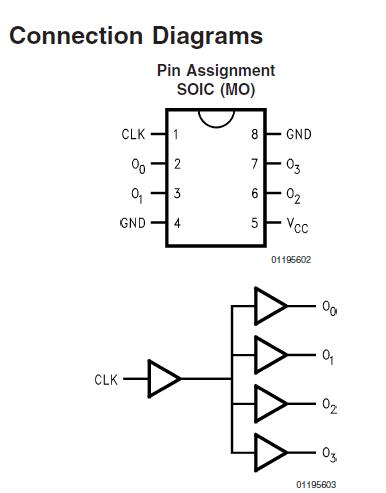

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CGS74LCT2524M |
|
IC CLOCK BUFFER 1:4 75MHZ 8-SOIC |
Data Sheet |
Negotiable |
|
||||
|
CGS74LCT2524MX |
|
IC CLOCK BUFFER 1:4 75MHZ 8-SOIC |
Data Sheet |
Negotiable |
|
||||
