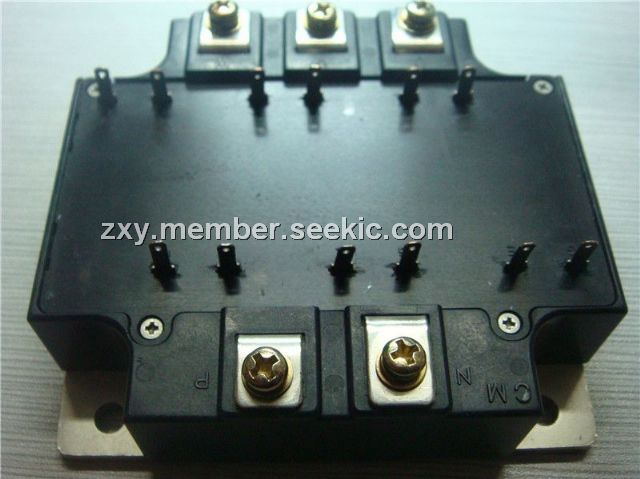

CM100TU-12H

IGBT Module, 600 V, 100 A, 2500 Vrms, CM100TU-12H

Rated 5 Rating 5 | reviews | Write a review

Price:: US $25.00~30.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $25.00~30.00

PartNumber:: CM100TU-12H

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-03

From Other Seller

Part Number:CM100TU-12H
US $25.00 - 30.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

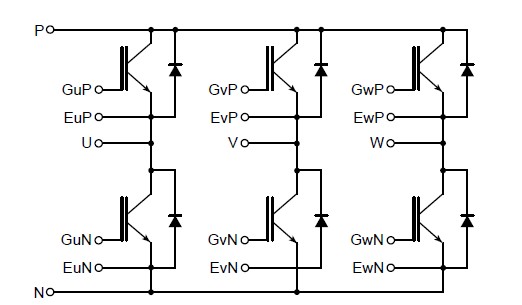

The CM100TU-12H is a kind of Mitsubishi IGBT Module which is designed for use in switching applications. Each module consists of six IGBTs in a three phase bridge configuration, with each transistor having a reverse-connected superfast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.The typical applications of CM100TU-12H include: (1)AC Motor Control; (2)Motion/Servo Control; (3)UPS; (4)Welding Power Supplies.

Parametrics

CM100TU-12H absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150 ℃; (2)Storage Temperature, Tstg: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 600 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (Tc = 25℃), IC: 100 Amperes; (6)Peak Collector Current (Tj ≦150℃) ICM: 200 Amperes; (7)Emitter Current, IE: 100 Amperes; (8)Peak Emitter Current, IEM: 200 Amperes; (9)Maximum Collector Dissipation (Tj < 150℃), Pc: 400 Watts; (10)Mounting Torque, M4 Main Terminal: – 1.3 ~ 1.7 N · m; (11)Mounting Torque, M5 Mounting: – 2.5 ~ 3.5 N · m; (12)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrms.

Features

CM100TU-12H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
