Product Summary

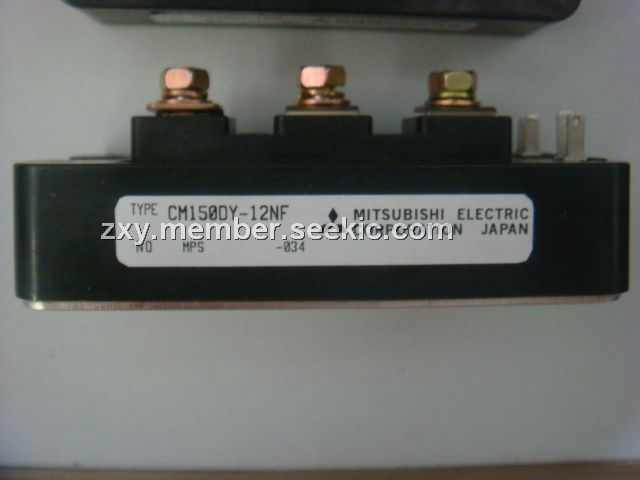

The CM150DY-12NF is a MITSUBISHI IGBT module. The applications of the CM150DY-12NF include General purpose inverters & Servo controls, etc.
Parametrics
CM150DY-12NF absolute maximum ratings: (1)Collector-emitter voltage: 600 V; (2)Gate-emitter voltage: ±20 V; (3)Collector current: 150 A; (4)Emitter current: 150 A; (5)Maximum collector dissipation: 590 W at Tc=25 ℃; (6)Junction temperature: -40 to +150 ℃; (7)Storage temperature: -40 to +150 ℃; (8)Isolation voltage: 2500 V.
Features
CM150DY-12NF features: (1)IC: 150A; (2)VCES: 600V; (3)Insulated Type; (4)2-elements in a pack.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM150DY-12NF |
|
IGBT MOD DUAL 600V 150A NF SER |
Data Sheet |
|
|
||||||||||||||||||
