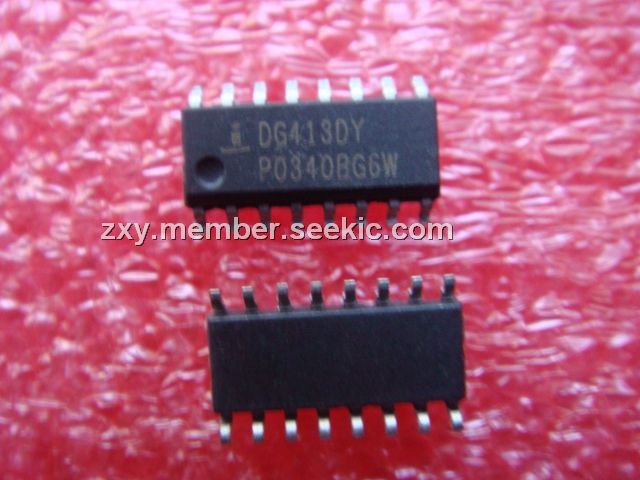

DG413DY

CMOS analog switch, SOP-16, 44V, 30mA, Low Charge Injection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~1.00

PartNumber:: DG413DY

Brand:: Intersil Corporation - Intersil | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:DG413DY
US $0.50 - 1.00
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

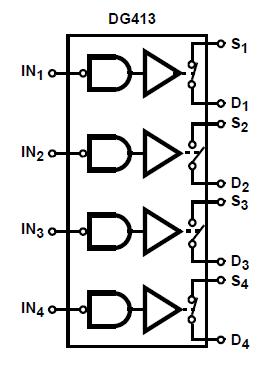

The DG413DY monolithic CMOS analog switch is drop-in replacements for the popular DG211 and DG212 series devices. It includes four independent single pole throw (SPST) analog switches, and TTL and CMOS compatible digital inputs. The DG413DY features lower analog ON resistance (<35Ω) and faster switch time (tON<175ns) compared to the DG211 or DG212. Charge injection has been reduced, simplifying sample and hold applications. The applications of the DG413DY include Audio Switching, Battery Operated Systems, Data Acquisition, Hi-Rel Systems, Sample and Hold Circuits, Communication Systems, Automatic Test Equipment.

Parametrics

DG413DY absolute maximum ratings: (1)V+ to V-: 44V; (2)GND to V-: 25V; (3)VL: (GND -0.3V) to (V+) +0.3V; (4)Digital Inputs, VS, VD: (V-) -2V to (V+) + 2V or 30mA, Whichever Occurs First; (5)Continuous Current (Any Terminal): 30mA; (6)Peak Current, S or D (Pulsed 1ms, 10% Duty Cycle Max): 100mA.

Features

DG413DY features: (1)ON Resistance (Max): 35Ω; (2)Low Power Consumption (PD) <35mW; (3)Fast Switching Action: tON (Max): 175ns, tOFF (Max): 145ns; (4)Low Charge Injection; (5)Upgrade from DG211, DG212; (6)TTL, CMOS Compatible; (7)Single or Split Supply Operation; (8)Pb-Free Plus Anneal Available (RoHS Compliant).
