Product Summary
The DS75451M is a Peripheral Driver. It is a broad definition given to Interface Power device. The DS75451M generally has open-collector output transistors that can switch hundreds of milliamps at high voltage, and is driven by standard Digital Logic gates. The DS75451M serves many applications such as: Relay Drivers, Printer Hammer Drivers, Lamp Drivers, Bus Drivers, Core Memory Drivers, Voltage Level Transistors, and etc. The DS75451M has many varied load situations depending on the application, and requires the design engineer to interpret the limitations of the device vs its application. The major considerations arePeak Current, Breakdown Voltage, and Power Dissipation .
Parametrics
DS75451M absolute maximum ratings: (1)Supply Voltage, (VCC): 7.0V; (2)Input Voltage: 5.5V; (3)Inter-Emitter Voltage: 5.5V; (4)Output Voltage: 30V; (5)Output Current: 300 mA; (6)Maximum Power Dissipation at 25℃: 632 mW; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering, 4 sec.): 260℃; (9)Operating Supply Voltage, (VCC): 4.75 to 5.25 V; (10)Operating Temperature, (TA): 0℃ +70℃.
Features
DS75451M features: (1)300 mA output current capability; (2)High voltage outputs; (3)No output latch-up at 20V; (4)High speed switching; (5)Choice of logic function; (6)TTL compatible diode-clamped inputs; (7)Standard supply voltages; (8)Replaces TI “A” and “B” series.

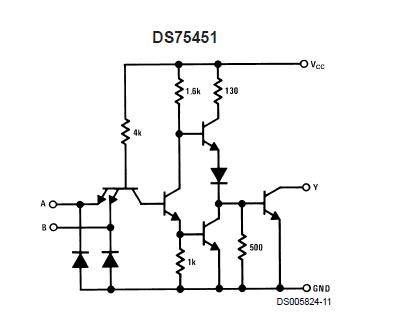

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS75451M |
|
IC DRIVER DUAL PERIPHERAL 8-SOIC |
Data Sheet |
Negotiable |
|
||||
|
DS75451MX |
|
IC DRIVER DUAL PERIPHERAL 8-SOIC |
Data Sheet |
Negotiable |
|
||||
