Product Summary

The DS75453M is a dual peripheral driver which is a member of the versatile device family. It is designed for use in systems that use TTL logic. Typical applications include high speed logic buffers, power drivers, relay drivers, lamp drivers, MOS drivers, bus drivers and memory drivers. The DS75453M is a dual peripheral NOR driver, respectively, (positive logic) with the output of the logic gates internally connected to the bases of the NPN output transistors.

Parametrics

DS75453M absolute maximum ratings: (1)Supply Voltage, (VCC): 7.0V; (2)Input Voltage: 5.5V; (3)Inter-Emitter Voltage: 5.5V; (4)Output Voltage: 30V; (5)Output Current: 300 mA; (6)Maximum Power Dissipation at 25℃: 632 mW; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering, 4 sec.): 260℃; (9)Operating Supply Voltage, (VCC): 4.75 to 5.25 V; (10)Operating Temperature, (TA): 0℃ +70℃.

Features

DS75453M features: (1)300 mA output current capability; (2)High voltage outputs; (3)No output latch-up at 20V; (4)High speed switching; (5)Choice of logic function; (6)TTL compatible diode-clamped inputs; (7)Standard supply voltages; (8)Replaces TI “A” and “B” series.

Diagrams

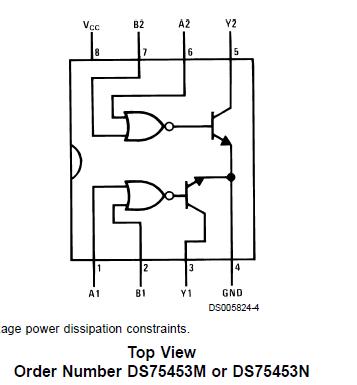

DS75453M block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DS75453M
DS75453M

IC DRIVER DUAL PERIPHERAL 8-SOIC
Data Sheet
Negotiable
