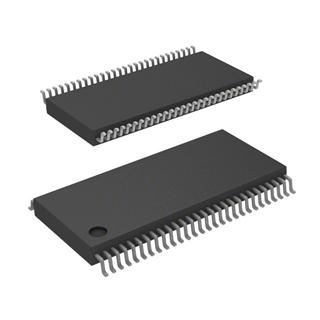

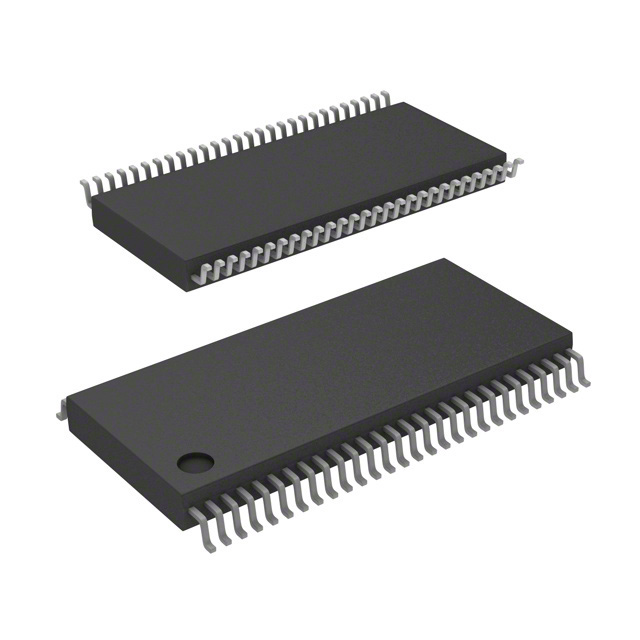

DS90CR282MTD

Product Summary

The DS90CR282MTD is a receiver which converts the LVDS data streams back into 28 bits of CMOS/TTL data. At a transmit clock frequency of 40 MHz, 28 bits of TTL data are transmitted at a rate of 280 Mbps per LVDS data channel. Using a 40 MHz clock, the data throughput is 1.12 Gbit/s (140 Mbytes/s). The multiplexing of the DS90CR282MTD provides a substantial cable reduction. Long distance parallel single-ended buses typically require a ground wire per active signal (and have very limited noise rejection capability). Thus, for a 28-bit wide data bus and one clock, up to 58 conductors are required. With the Channel Link chipset as few as 11 conductors (4 data pairs, 1 clock pair and a minimum of one ground) are needed. The DS90CR282MTD provides a 80% reduction in required cable width, which provides a system cost savings, reduces connector physical size and cost, and reduces shielding requirements due to the cables’smaller form factor. The DS90CR282MTD can support a variety of signal combinations. For example, 7 4-bit nibbles or 3 9-bit (byte + parity) and 1 control.

Parametrics

DS90CR282MTD absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +6V; (2)CMOS/TTL Input Voltage: -0.3V to (VCC + 0.3V); (3)CMOS/TTL Ouput Voltage: -0.3V to (VCC + 0.3V); (4)LVDS Receiver Input Voltage: -0.3V to (VCC + 0.3V); (5)LVDS Driver Output Voltage: -0.3V to (VCC + 0.3V); (6)LVDS Output Short Circuit Duration: continuous; (7)Junction Temperature: +150℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (Soldering, 4 sec.): +260℃; (10)Maximum Package Power Dissipation @ +25℃ MTD56(TSSOP) Package: 1.61W; (11)Package Derating: 12.4 mW/℃ above +25℃.

Features

DS90CR282MTD features: (1)Narrow bus reduces cable size and cost; (2)±1V common mode range (ground shifting); (3)290 mV swing LVDS data transmission; (4)1.12 Gbit/s data throughput; (5)Low swing differential current mode drivers reduce EMI; (6)Rising edge data strobe; (7)Power down mode; (8)Offered in low profile 56-lead TSSOP package.
