Product Summary

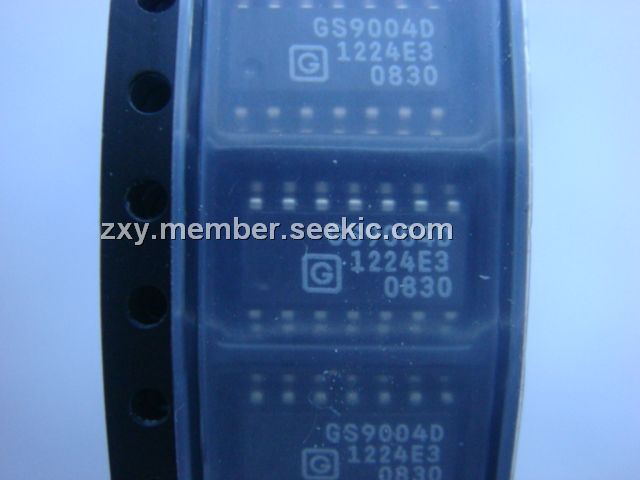

The GS9004D is an improved monolithic automatic cable equalizer developed for SMPTE/EBU scrambled NRZI Serial Digital Video signals. The applications of the GS9004D include: Front-end cable equalization for digital video systems; Input equalization for serial digital distribution amplifiers, routers, production switchers and other receiving equipment.
Parametrics
GS9004D absolute maxing ratings: (1)Supply Voltage (VS): 5.5V; (2)Input Voltage Range (any input): VCC+0.5 to VEE -0.5V; (3)DC Input Current (any one input): 10mA; (4)Power Dissipation: 500mW; (5)Operating Temperature Range: 0℃ ≤ TA ≤ 70℃; (6)Storage Temperature Range: -65℃ ≤ TS ≤ 150℃; (7)Lead Temperature (soldering, 10 sec): 260℃.
Features
GS9004D features: (1)automatic cable equalization; (2)typically greater than 300 m of high quality cable at 270 Mb/s; (3)typically 300 m of high quality cable at 360 Mb/s; (4)capability to drive 50Ω loads (to VTT); (5)fully compatible with SMPTE 259M and operational to 400 Mb/s; (6)signal strength indicator; (7)output eye monitor; (8)14 pin SOIC packaging; (9)single +5 or -5 volt power supply operation; (10)Pb-free and Green.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 GS9004D |
Other |
|
Data Sheet |
Negotiable |
|
||||
