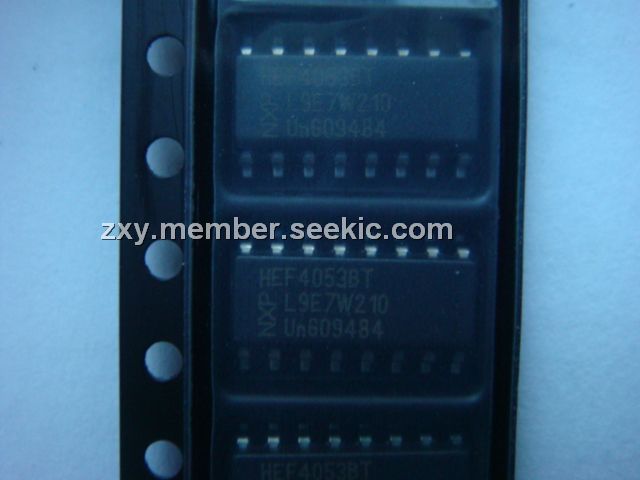

HEF4053BT

Triple 2-channel, analogue multiplexer, PHILIPS, -18 to + 0.5 V Supply voltage

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: HEF4053BT

Brand:: Philips Electronics India Limited - PHILIPS | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-29

From Other Seller

Part Number:HEF4053BT
US $0.10 - 0.50
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HEF4053BT is a triple 2-channel analogue multiplexer/demultiplexer with a common enable input (E). Each multiplexer/demultiplexer has two independent inputs/outputs (Y0 and Y1), a common input/output (Z), and select inputs (Sn). Each HEF4053BT also contains two-bidirectional analogue switches, each with one side connected to an independent input/output (Y0 and Y1) and the other side connected to a common input/output (Z). With E LOW, one of the two switches is selected (low impedance ON-state) by Sn. With E HIGH, all switches are in the high impedance OFF-state, independent of SA to SC. VDD and VSS are the supply voltage connections for the digital control inputs (SA to SC and E). The VDD to VSS range is 3 to 15 V. The analogue inputs/outputs (Y0, Y1 and Z) can swing between VDD as a positive limit and VEE as a negative limit. VDD-VEE may not exceed 15 V. For operation as a digital multiplexer/demultiplexer, VEE is connected to VSS (typically ground).

Parametrics

HEF4053BT absolute maximum ratings: (1)Supply voltage (with reference to VDD) VEE: -18 to + 0.5 V.

Features

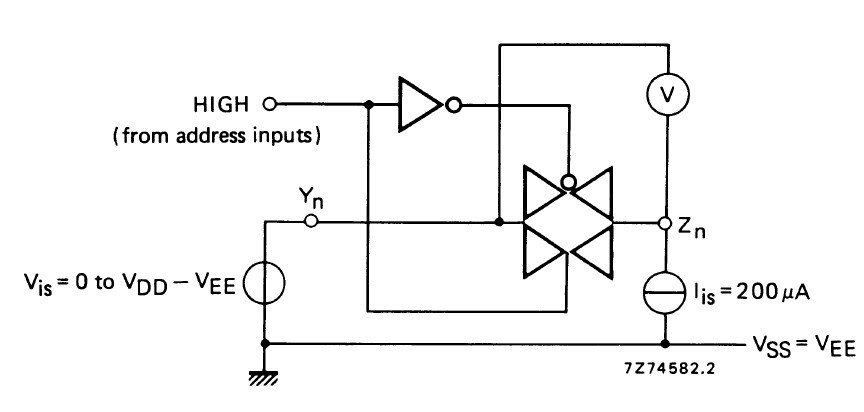

HEF4053BT features: (1)ON resistance VDD-VEE 5V RON 350 2500Ω; 10V RON 80 245Ω; 15V: 60 175Ω; (2)ON resistance 5V: 115 340Ω; 10 RON 50 160Ω; 15 40 115Ω; (3)ON resistance 5 120 365Ω; 10 RON 65 200Ω; 15V: 50 155Ω; (4)OFF state leakage current, all channels OFF: 1000 nA; (5)OFF-state leakage current, any channel: 200 nA.
