Product Summary

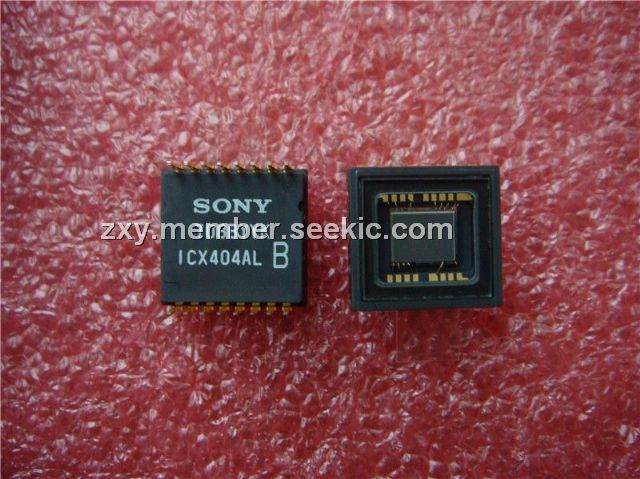

The ICX404AL-B is an interline CCD solid-state image sensor suitable for EIA B/W video cameras with a diagonal 6mm (Type 1/3) system. Compared with the conventional product ICX054BL, basic characteristics such as sensitivity, smear, dynamic range and S/N are improved drastically. The ICX404AL-B features a field period readout system and an electronic shutter with variable charge-storage time. The ICX404AL-B is suitable for applications such as surveillance cameras, automotive cameras, etc.
Parametrics
ICX404AL-B absolute maximum ratings: (1)VDD, VOUT, φRG–φSUB: -40V to +8V; (2)Vφ1, Vφ3–φSUB: -50V to +15V; (3)Vφ2, Vφ4, VL–φSUB: -50V to 0.3V; (4)Hφ1, Hφ2, GND–φSUB: -40V to 0.3V; (5)VDD, VOUT, φRG–GND: -0.3V to 20V; (6)Vφ1, Vφ2, Vφ3, Vφ4–GND: -10V to +18V; (7)Hφ1, Hφ2–GND: -10V to +6V; (8)Vφ1, Vφ3–VL: -0.3V to +28V; (9)Vφ2, Vφ4, Hφ1, Hφ2, GND–VL: -0.3V to +15V; (10)Storage temperature: -30℃ to 80℃; (11)Operating temperature: -10℃ to +60℃.
Features
ICX404AL-B features: (1)High sensitivity (+4dB compared with the ICX054BL); (2)Low smear (?0dB compared with the ICX054BL); (3)High D range (+2dB compared with the ICX054BL); (4)High S/N; (5)Low dark current; (6)Excellent antiblooming characteristics; (7)Continuous variable-speed shutter; (8)No voltage adjustment (Reset gate and substrate bias are not adjusted.); (9)Reset gate: 5V drive; (10)Horizontal register: 5V drive.
