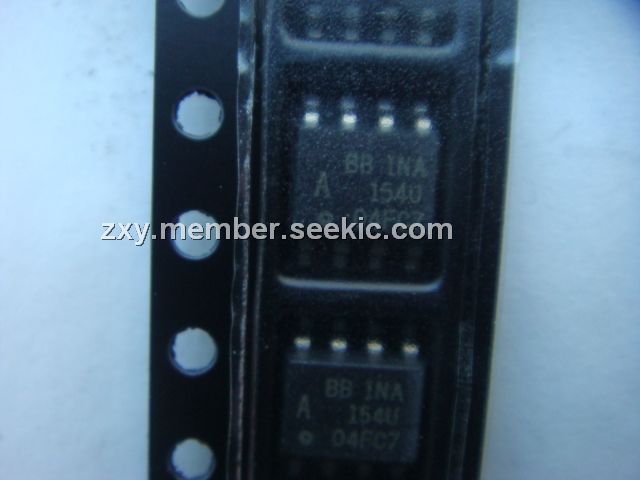

Product Summary

The INA154UA is a high slew rate, unity-gain difference amplifier consisting of a precision op amp with a precision resistor network. The on-chip resistors of INA154UA are laser trimmed for accurate gain and high commonmode rejection. Excellent TCR tracking of the resistors maintains gain accuracy and common-mode rejection over temperature. The applications of the INA154UA include differential input amplifier instrumentation amplifier building block, unity-gain inverting amplifier, summing amplifier, differential current receiver, voltage-controlled current source, synchronous demodulator.

Parametrics

INA154UA absolute maximum ratings: (1)Supply Voltage, V+ to V–: 40V; (2)Input Voltage Range: ±80V; (3)Output Short Circuit (to ground): Continuous; (4)Operating Temperature: –55℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

INA154UA features: (1)designed for low cost; (2)low offset voltage: ±750mV max; (3)low offset drift: ±2mV℃; (4)low gain error: ±0.05% max; (5)wide bandwidth: 3MHz; (6)high slew rate: 14V/ms; (7)fast settling time: 3ms to 0.01%; (8)wide supply range: ±4V to ±18V; (9)low quiescent current: 2.4mA; (10)SO-8 surface-mount package.

Diagrams

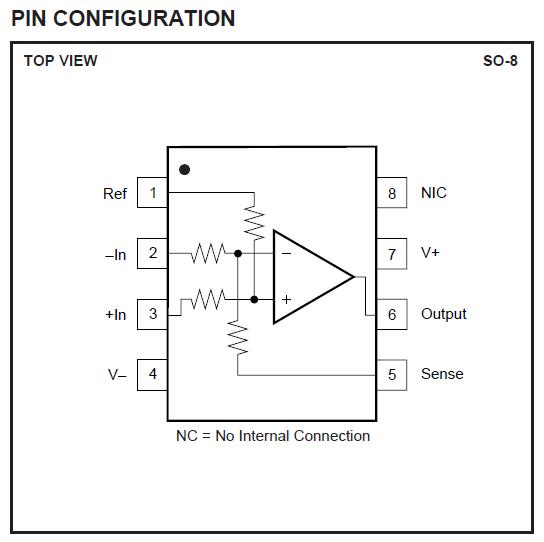

INA154UA pin configuration
