Product Summary

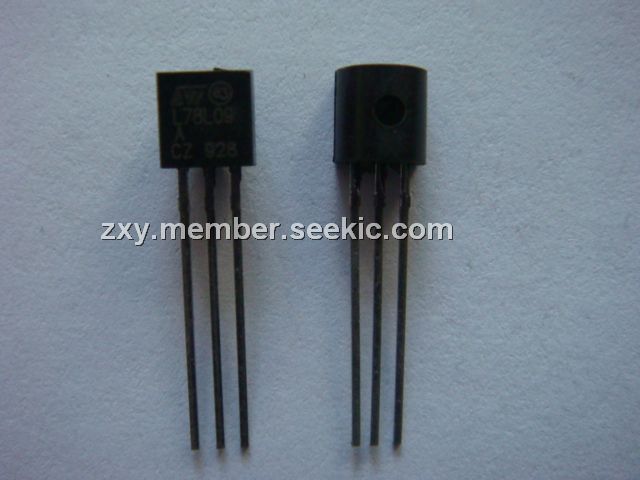

The L78L09ACZ three-terminal positive regulator employs internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, it can deliver up to 100 mA output current. It is intended as fixed voltage regulator in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, it can be used with power pass elements to make high-current voltage regulators. The L78L09ACZ used as Zener diode/resistor combination replacement, offers an effective output impedance improvement of typically two orders of magnitude, along with lower quiescent current and lower noise.
Parametrics
L78L09ACZ absolute maximum ratings: (1)VI DC Input Voltage VO = 3.3 to 9 V: 30V; VO = 12 to 15 V: 35 V; VO = 18 to 24 V 40V; (2)IO Output Current: 100 mA; (3)Ptot Power Dissipation: Internally Limited; (4)Tstg Storage Temperature Range: -40 to 150 ℃; (5)Top Operating Junction Temperature Range: 0 to 125℃.
Features
L78L09ACZ features: (1)Output current up to 100 mA; (2)Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 20; 24V; (3)Thermal overload protection; (4)Short circuit protection; (5)No external components are required; (6)Available in either ±5% (AC) or ±10%(C) selection.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
L78L09ACZ |
STMicroelectronics |
Linear Regulators - Standard 9.0V 0.1A Positive |
Data Sheet |
|
|
|||||||||||||
L78L09ACZ-AP |
STMicroelectronics |
Linear Regulators - Standard 9.0V 0.1A Positive |
Data Sheet |
|
|
|||||||||||||
L78L09ACZ-TR |
STMicroelectronics |
Linear Regulators - Standard Pos Vltg regulators |
Data Sheet |
|
|
