Product Summary

The LF444ACN is a quad low power operational amplifier provides many of the same AC characteristics as the industry standard LM148 while greatly improving the DC characteristics of the LM148. The LF444ACN has the same bandwidth, slew
rate, and gain (10 kW load) as the LM148 and only draws one fourth the supply current of the LM148. In addition the well matched high voltage JFET input devices of the LF444ACN reduce the input bias and offset currents by a factor of 10,000 over the LM148. The LF444ACN also has a very low equivalent input noise voltage for a low power amplifier. The LF444ACN is pin compatible with the LM148 allowing an immediate 4 times reduction in power drain in many applications. The LF444ACN should be used wherever low power dissipation and good electrical characteristics are the major considerations.

Parametrics

LF444ACN absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±38V; (3)Input Voltage Range: ±19V; (4)Output Short Circuit Duration: Continuous; (5)Power Dissipation: 900 mW; (6)Tj max: 150℃; (7)θjA (Typical): 100℃/W; (8)Storage Temperature Range: -65℃ ≤ TA ≤ 150℃; (9)ESD Tolerance: Rating to be determined; (10)Soldering Information Dual-In-Line Packages (Soldering, 10 sec.): 260℃; (11)Small Outline Package Vapor Phase (60 sec.): 215℃; (12)mall Outline Package Infrared (15 sec.): 220℃.

Features

LF444ACN features: (1)1/4 supply current of a LM148: 200 μA/Amplifier (max); (2)Low input bias current: 50 pA (max); (3)High gain bandwidth: 1 MHz; (4)High slew rate: 1 V/μs; (5)Low noise voltage for low power; (6)Low input noise current; (7)High input impedance: 1012Ω; (8)High gain VO = ±10V, RL = 10k: 50k (min).

Diagrams

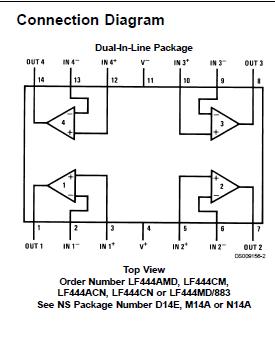

LF444ACN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LF444ACN
LF444ACN

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-325: $1.11
325-500: $0.97
500-1000: $0.80
1000-2500: $0.75
