Product Summary

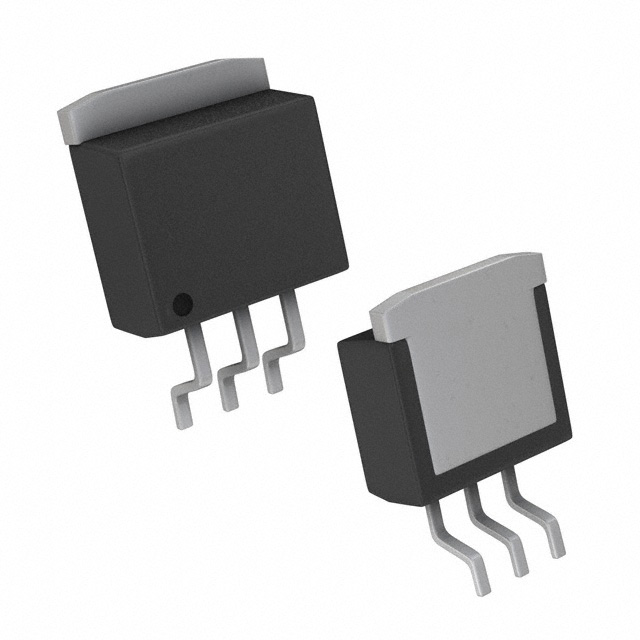

The LM1086CSX-ADJ is a low dropout positive voltage regulator with a maximum dropout of 1.5V at 1.5A of load current. It has the same pin-out as National Semiconductor’s industry standard LM317. The LM1086CSX-ADJ is available in an adjustable version, which can set the output voltage with only two external resistors. It is also available in six fixed voltages: 1.8V, 2.5V, 2.85V, 3.3V, 3.45V and 5.0V. The fixed versions integrate the adjust resistors. The LM1086CSX-ADJ circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown. The LM1086CSX-ADJ is available in TO-263 package. Refer to the LM1084 for the 5A version, and the LM1085 for the 3A version.
Parametrics
LM1086CSX-ADJ absolute maximum ratings: (1)Maximum Input-to-Output Voltage Differential: 29V; (2)Power Dissipation: Internally Limited; (3)Junction Temperature (TJ): 150℃; (4)Storage Temperature Range: -65℃ to 150℃; (5)Lead Temperature 260℃, to 10 sec ESD Tolerance: 2000V.
Features
LM1086CSX-ADJ features: (1)Available in Adjustable Version; (2)Current Limiting and Thermal Protection; (3)Output Current 1.5A; (4)Line Regulation 0.015% (typical); (5)Load Regulation 0.1% (typical).

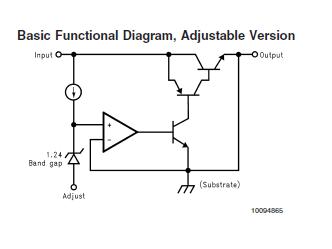

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM1086CSX-ADJ |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators |
Data Sheet |
|
|
||||||||||||||
|
LM1086CSX-ADJ/NOPB |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators 1.5A LDO POS REG |
Data Sheet |
|
|
||||||||||||||
