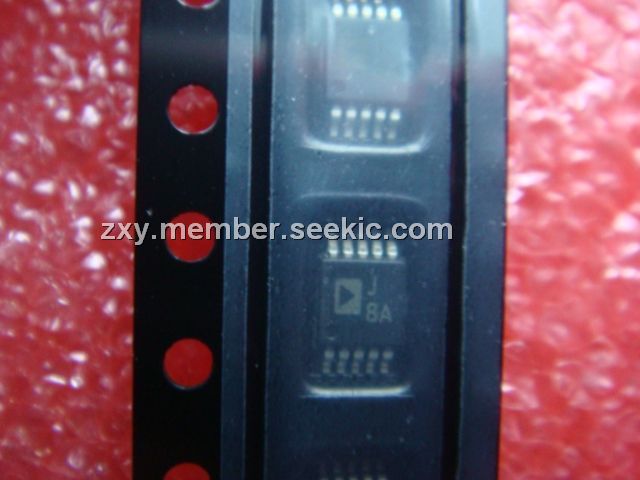

AD8316ARM-REEL7

Dual Output GSM PA Controller, 10-lead MSOP, 16-lead LFCSP, 2.7 V to 5.5 V supply

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.60~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.60~1.60

PartNumber:: AD8316ARM-REEL7

Brand:: Analog Devices - ADI | Pack: MSOP | D/C: 10+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-07

From Other Seller

Part Number:AD8316ARM-REEL7
US $1.60 - 1.60
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

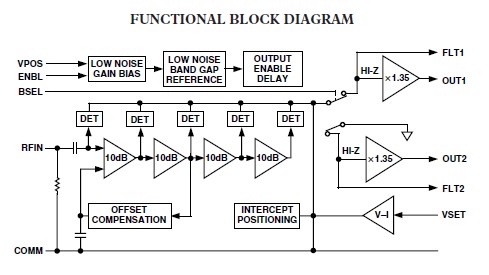

Product Summary

The AD8316ARM-REEL7 is a complete, low cost subsystem for the precise control of dual RF power amplifiers (PAs) operating in the frequency range 0.1 GHz to 2.5 GHz and over a typical dynamic range of 50 dB. The device is a dual-output version of the AD8315 and intended for use in dual-band or triband cellular handsets and other battery-operated wireless devices where a separate power control signal is required for each band. The AD8316ARM-REEL7 is available in 10-lead MSOP and 16-lead LFCSP packages and consumes 8.5 mA from a 2.7 V to 5.5 V supply. When it is powered down, the sleep current is 4 μA.

Parametrics

Absolute maximum ratings: (1)Supply Voltage VPOS: 5.5 V; (2)OUT1, OUT2, VSET, ENBL: 0 V, VPOS; (3)RFIN: 17 dBm; (4)Equivalent Voltage: 1.6 V; (5)Internal Power Dissipation: 100 mW; (6)θJA (MSOP): 200°C/W; (7)θJA (LFCSP, Paddle soldered): 80°C/W; (8)θJA (LFCSP, Paddle not soldered): 130°C/W; (9)Maximum Junction Temperature: 125°C; (10)Operating Temperature Range: –40°C to +85°C; (11)Storage Temperature Range: –65°C to +150°C; (12)Lead Temperature Range (Soldering 60 sec): MSOP: 300°C; LFCSP: 240°C.

Features

Features: (1)Complete RF Detector/Controller Function; (2)Selectable Dual Outputs; (3)49 dB Range at 0.9 GHz (–47.6 dBm to +1.5 dBm re 50 ); (4)Accurate Scaling from 0.1 GHz to 2.5 GHz; (5)Temperature-Stable Linear-in-dB Response; (6)Log Slope of 22 mV/dB; (7)True Integration Function in Control Loop; (8)Low Power: 23 mW at 2.7 V; (9)Power-Down to 11 uW.
