Product Summary

The LM211N is a voltage comparator that has input currents approximately a hundred times lower than devices like the mA710. The LM211N is designed to operate over a wider range of supply voltages; from standard ±15V op amp supplies down to a single 3V supply. Its output is compatible with RTL, DTL, and TTL as well as MOS circuits. Further, the LM211N can drive lamps or relays, switching voltages up to 50V at currents as high as 50mA. Both the inputs and the outputs of the LM211N can be isolated from system ground, and the output can drive loads referred to ground, the positive supply, or the negative supply. Offset balancing and strobe capability are provided and outputs can be wire-ORed.

Parametrics

LM211N absolute maximum ratings: (1)VS Total supply voltage: 36 V; (2)Output to negative supply voltage: 50 V; (3)Ground to negative supply voltage: 30 V; (4)Differential input voltage: ±30 V; (5)VIN Input voltage: ±15 V; (6)PD MAX Maximum power dissipation, TA=25℃ (still-air): F package 810 mW, N package 1190 mW, D package 780 mW; (7)I Output short-circuit duration: 10 sec; (8)TA Operating ambient temperature range: -25℃ to +85℃; (9)TSTG Storage temperature range: -65℃ to +150℃; (10)TSOLD Lead soldering temperature (10sec max): 300℃.

Features

LM211N features: (1)Maximum input bias current: 150nA; (2)Maximum offset current: 20nA; (3)Differential input voltage range: ±30V; (4)Power consumption: 135mW at ±15V; (5)High sensitivity-200V/mV; (6)Zero crossing detector.

Diagrams

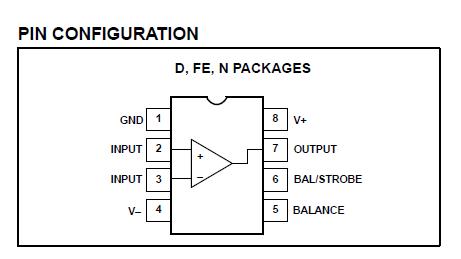

LM211N pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

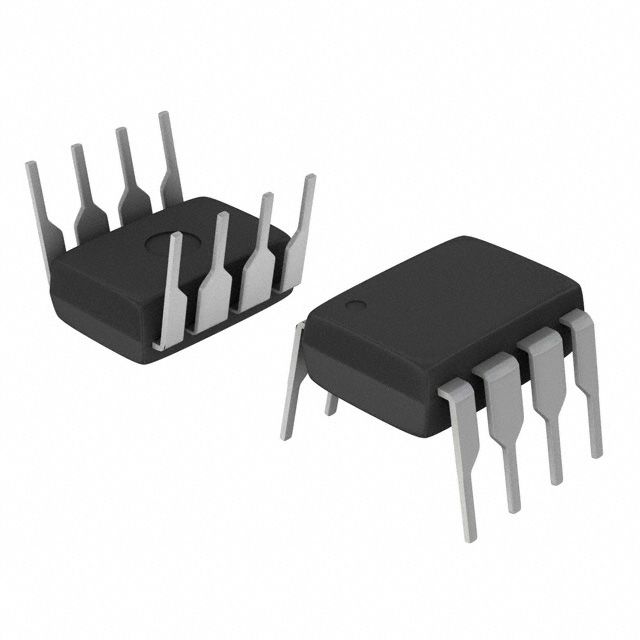

LM211N
LM211N
STMicroelectronics
Comparator ICs Single GP Voltage
Data Sheet
0-1: $0.18
1-10: $0.13
10-100: $0.11
100-250: $0.10
