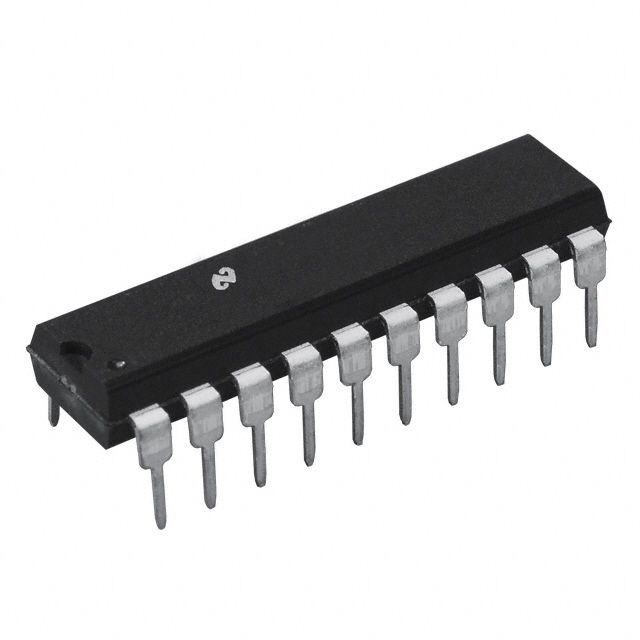

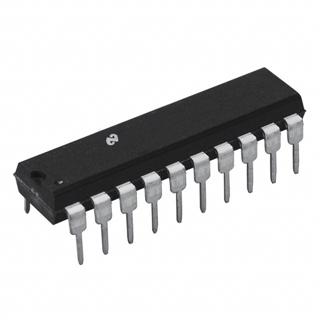

LM2202N

Product Summary

The LM2202N is a very high frequency video amplifier system intended for use in high resolution monochrome or RGB color monitor applications. In addition to the wideband video amplifier the LM2202N contains a gated differential input black level clamp comparator for brightness control, a DC controlled attenuator for contrast control and a DC controlled sub contrast attenuator for drive control. The DC control for the contrast attenuator is pinned out separately to provide a more accurate control system for RGB color monitor applications. All DC controls offer a high input impedance and operate over a 0V to 4V range for easy interface to bus controlled alignment systems. The LM2202N operates from a nominal 12V supply but can be operated with supply voltages down to 8V for applications that require reduced IC package power dissipation characteristics. The LM2202N is applicated for High resolution CRT monitors, Video switches, Video AGC amplifier and Wideband amplifier with gain and DC offset control.

Parametrics

LM2202N absolute maximum ratings: (1)Supply Voltage VCC Pins 4, 7, 16 to Ground Pins 5, 13, 15: 13.5V; (2)Voltage at Any Input Pin (VIN): VCC ≥ VIN ≥ GND; (3)Video Output Current (I17): 28 mA; (4)Package Power Dissipation at TA = 25℃: 1.56W; (5)(Above 25℃ Derate Based θJA and TJ) Package Thermal Resistance (θJA): N20A 68℃/W, M20B 90℃/W; (6)Junction Temperature (TJ): 150℃; (7)Storage Temperature Range (Tstg): -65℃ to +150℃; (8)Lead Temperature: N Package (Soldering, 10 sec.) 265℃; (9)ESD Susceptibility: Human Body Model 100 pF, Discharged through a 1.5k, Resistor 1.5 kV.

Features

LM2202N features: (1)Wideband video amplifier (f.3dB = 230 MHz at VO = 4 VPP); (2)tr, tf = 1.5 ns at VO = 4 VPP; (3)Externally gated comparator for brightness control; (4)0V to 4V high input impedance DC contrast control (>40 dB range); (5)0V to 4V high input impedance DC drive control (±3 dB range); (6)Easy to parallel for optimum color tracking in RGB systems; (7)Output stage clamps to 0.65V and provides up to 9V output voltage swing; (8)Output stage directly drives most hybrid or discrete CRT amplifier stages; (9)Replacement for the LM1202.

Diagrams
