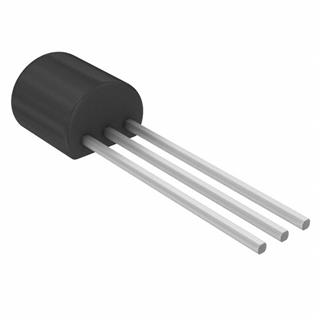

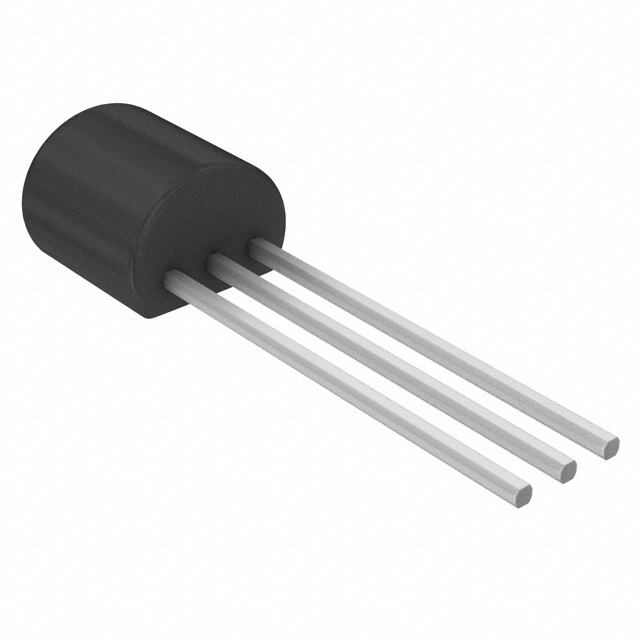

LM234Z

LM234Z, TO92-3, 3-terminal adjustable current source, 40V, 10 mA, 400 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.30

PartNumber:: LM234Z

Brand:: National Semiconductor - NS | Pack: TO | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:LM234Z
US $1.00 - 1.30
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM234Z is a 3-terminal adjustable current source featuring 10,000 : 1 range in operating current, excellent current regulation and a wide dynamic voltage range of 1V to 40V. Current is established with one external resistor and no other parts are required. Initial current accuracy is ±3%. TheLM234Z is true floating current sources with no separate power supply connections. In addition, reverse applied voltages of up to 20V will draw only a few dozen microamperes of current, allowing the devices to act as both a rectifier and current source in AC applications. The LM234Z is guaranteed over a temperature range of -25℃ to +100℃. The LM234Z is available in TO-92 package.

Parametrics

LM234Z absolute maximum ratings: (1)V+ to V- Forward Voltage: 40V; (2)V+ to V- Reverse Voltage: 20V; (3)R Pin to V- Voltage: 5V; (4)Set Current: 10 mA; (5)Power Dissipation: 400 mW; (6)ESD Susceptibility: 2000V; (7)Operating Temperature Range: -25℃ to +100℃; (8)Soldering Information (10 sec.): 260℃.

Features

LM234Z features: (1)0.02%/V current regulation; (2)Programmable from 1μA to 10mA; (3)True 2-terminal operation; (4)Available as fully specified temperature sensor; (5)±3% initial accuracy.
