Product Summary
The LM2445TA/NOPB is an integrated high voltage CRT driver circuit designed for use in color monitor applications. The LM2445TA/NOPB contains three high input impedance, wide band amplifiers which directly drive the RGB cathodes of a CRT. Each channel has its gain internally set to -20 and can drive CRT capacitive loads as well as resistive loads present in other applications, limited only by the package’s power dissipation. The LM2445TA/NOPB is packaged in an industry standard 9-lead TO-220 molded plastic power package.
Parametrics
LM2445TA/NOPB absolute maximum ratings: (1)Supply Voltage (VCC): +90V; (2)Bias Voltage (VBB): +16V; (3)Input Voltage (VIN): 0V to 4.5V; (4)Storage Temperature Range (TSTG): -65℃ to +150℃; (5)Lead Temperature (Soldering, <10 sec.): 300℃; (6)ESD Tolerance, Human Body Model: 2 kV; (7)Machine Model: 250V.
Features
LM2445TA/NOPB features: (1)Higher gain to match LM126X CMOS preamplifiers; (2)0V to 3.75V input range; (3)Stable with 0–20 pF capacitive loads and inductive peaking networks; (4)Convenient TO-220 staggered lead package style; (5)Maintains standard LM243X Family pinout which is designed for easy PCB layout.

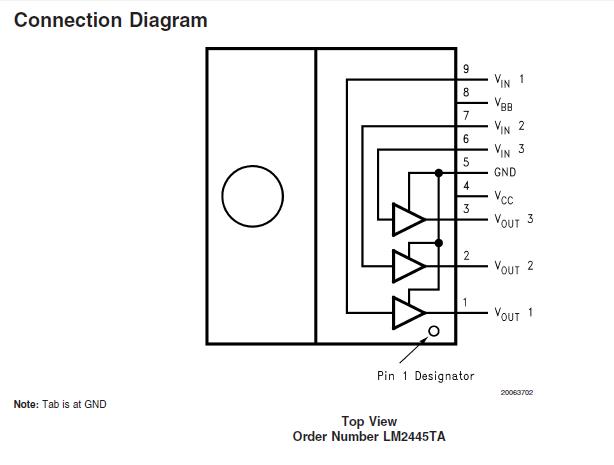

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2445TA/NOPB |
|
IC DRIVER CRT 3CH 7.5NS 9-TO-220 |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
LM2402 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
LM2402T |
|
IC DRIVER MONOLITHIC TO-220-11 |
Data Sheet |
Negotiable |
|
||||
|
LM2403 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LM2405 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LM2405T |
|
IC DRIVER MONOLITHIC TO-220-11 |
Data Sheet |
Negotiable |
|
||||
|
LM2406 |
Other |
|
Data Sheet |
Negotiable |
|
||||
