Product Summary
The LM285Z-2.5 is a micropower 2-terminal band-gap voltage regulator diode. Operating over a 20 μA to 20 mA current range, the LM285Z-2.5 features exceptionally low dynamic impedance and good temperature stability. On-chip trimming is used to provide tight voltage tolerance. the LM285Z-2.5 is rated for operation over a −40℃ to 85℃ temperature range. The LM285Z-2.5 is available in a hermetic TO-46 package and the LM285Z-2.5 is also available in a low-cost TO-92 molded package, as well as S.O. and SOT-23.
Parametrics
LM285Z-2.5 absolute maximum ratings: (1)Reverse Current: 30 mA; (2)Forward Current: 10 mA; (3)Operating Temperature Range: 40℃ to + 85℃; (4)Storage Temperature: -55℃ to + 150℃; (5)Soldering Information (10 sec.): 260℃.
Features
LM285Z-2.5 features: (1)±20 mV (±0.8%) max. initial tolerance (A grade); (2)Operating current of 20 μA to 20 mA; (3)0.6Ω dynamic impedance (A grade); (4)Low temperature coefficient; (5)Low voltage reference—2.5V.

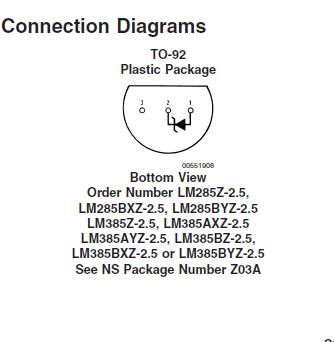

Diagrams
