LM2901N

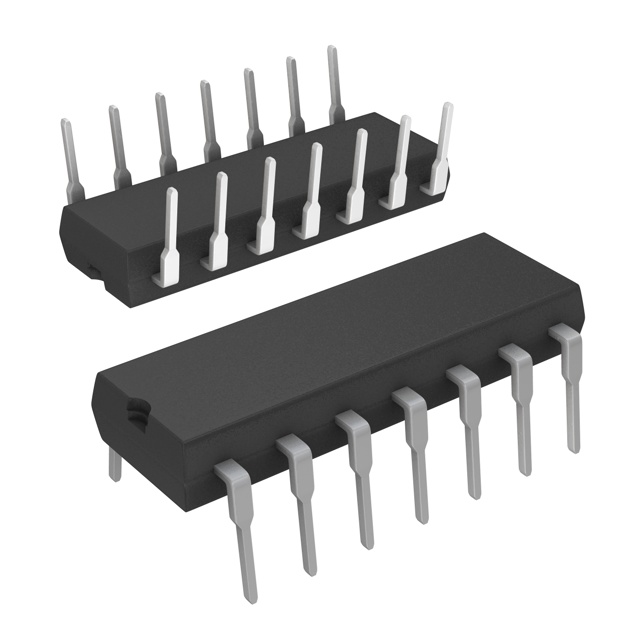

LM2901N, DIP, low power, quad voltage comparator, 36 V, 5nA, ±18V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.22 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.22

PartNumber:: LM2901N

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:LM2901N
US $0.20 - 0.22
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM2901N is a low power quad voltage comparator. The comparator LM2901N is designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible. The comparator LM2901N also has a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage.

Parametrics

LM2901N absolute maximum ratings: (1)VCC Supply Voltage: ±18 to 36 V; (2)Vid Differential Input Voltage: ±36 V; (3)VI Input Voltage: -0.3 to +36 V; (4)Tstg Storage Temperature Range: -65 to +150 ℃; (5)Tj Junction Temperature: +150 ℃.

Features

LM2901N features: (1)Wide single supply voltage range or dual supplies for all devices : +2V TO +36V OR ±1V TO ±18V; (2)Very low supply current (1.1ma) independent of supply voltage (1.4mW/comparator at +5V); (3)Low input bias current: 25nA TYP; (4)Low input offset current: ±5nA TYP; (5)Input common-mode voltage range includes ground; (6)Low output saturation voltage: 250mV TYP. (IO = 4mA); (7)Differential input voltage range equal to the supply voltage; (8)TTL, DTL, ECL, MOS, CMOS compatible outputs.
