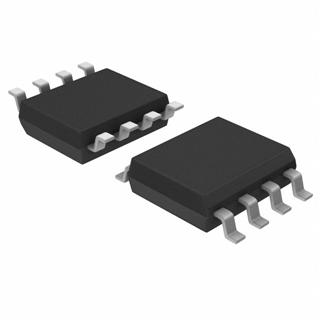

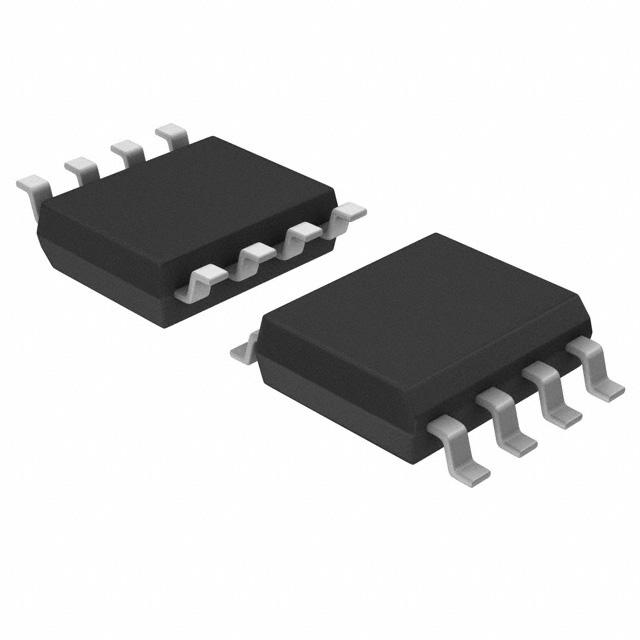

Product Summary

The LM358M is a general-purpose operational amplifier. The LM358M integrates two independent op-amps and phase compensation capacitors on a single chip and feature high-gain, low power consumption, and an operating voltage range of 3V to 32V.

Parametrics

LM358M absolute maximum ratings: (1)Supply Voltage, V+: +32V; (2)Operating Temperature Range, Topr: 0 to +70℃; (3)Storage Temperature Range, Tstg: -65 to +150℃; (4)Storage Temperature Range, VICM: -0.3 to +32V; (5)Maximum junction Temperature, Tjmax: +150℃.

Features

LM358M features: (1)Operating temperature range, Commercial Grade LM358 / 324 family : 0℃ to +70℃; (2)Wide operating supply voltage +3[V] to +32[V] (single supply); ±1.5[V] to ±16[V] (dual supply); (3)Low supply current; (4)Common-mode input voltage range including ground; (5)Differential input voltage range equal to maximum rated; (6)Supply voltage; (7)High large signal voltage gain; (8)Wide output voltage range.

Diagrams

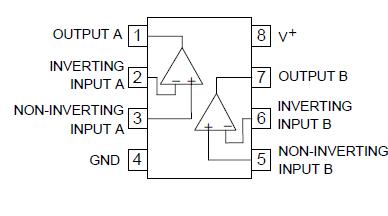

LM358M block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM358M
LM358M
Fairchild Semiconductor
Operational Amplifiers - Op Amps Dual Operational Amp
Data Sheet
0-1: $0.18
1-25: $0.15
25-100: $0.13
100-250: $0.11
LM358M/NOPB
LM358M/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps LOW PWR DUAL OP AMP
Data Sheet
0-1: $0.49
1-25: $0.38
25-100: $0.33
100-250: $0.29
LM358MX
LM358MX
Fairchild Semiconductor
Operational Amplifiers - Op Amps SOP-8 Dual Op Amp
Data Sheet
0-1: $0.20
1-25: $0.17
25-100: $0.14
100-250: $0.12
LM358MX/NOPB
LM358MX/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps LOW PWR DUAL OP AMP
Data Sheet
0-1: $0.55
1-25: $0.42
25-100: $0.37
100-250: $0.32
