LM3620M5X-8

Product Summary

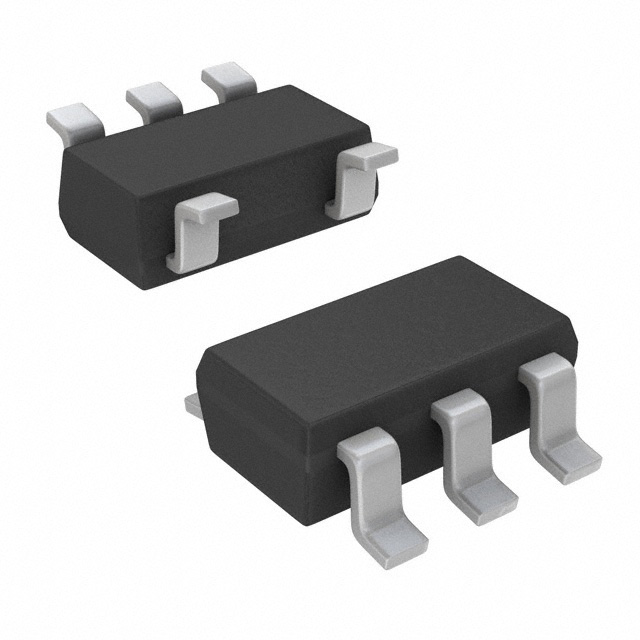

The LM3620M5X-8 is a monolithic integrated circuit designed to control the charging and end-of-charge control for lithium-ion rechargeable batteries. The LM3620M5X-8 is available in two versions for one or two cell charger applications. Each version provides the option of selecting the appropriate termination voltage for either coke or graphite anode lithium cells. The LM3620M5X-8 can operate from a wide range of DC input sources (4V to 30V). With no charger supply connected, the controller draws a quiescent current of only 10nA to minimize discharging of a connected battery pack. The LM3620M5X-8 consists of an operational transconductance amplifier, a bandgap voltage reference, a NPN driver transistor and precision voltage setting resistors. The output of the amplifier is made available to drive an external power transistor if higher drive currents are required. With a trimmed output voltage regulation of ±1.2% initial accuracy, the LM3620M5X-8 provides a simple, precise solution for end-of-charge control of lithium-ion rechargeable cells. The LM3620M5X-8 is packaged in a miniature 5-lead SOT-23 surface mount package for very compact designs.

Parametrics

LM3620M5X-8 absolute maixmum ratings: (1)Input Voltage (VDRIVE): 35V; (2)VEXT: 1.5V; (3)Junction Temperature: 150℃; (4)Storage Temperature: -65 to +150℃; (5)Lead Temp. Soldering Vapor Phase (60 sec.): 215℃; (6)Infrared (15 sec.): 220℃; (7)Power Dissipation (TA = 25℃): 300mW; (8)ESD Susceptibility: 2000V; (9)Ambient Temp. Range: 0℃ to 70℃; (10)Junction Temp. Range: 0℃ to 125℃; (11)Thermal Resistance (Junction to Ambient, θJ-A): 280℃/W; (12)Input Voltage (VDRIVE): 4V to 30V.

Features

LM3620M5X-8 features: (1)Voltage options for charging 1 or 2 cell stacks; (2)Adjustable output voltage for coke or graphite anodes; (3)Precision end-of-charge voltage control; (4)Wide input voltage range (4V to 30V); (5)Low off state current (<10nA); (6)Drive provided for external power stage; (7)Tiny SOT-23 package.

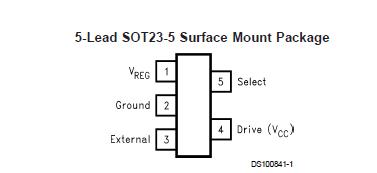

Diagrams
