LM393AD

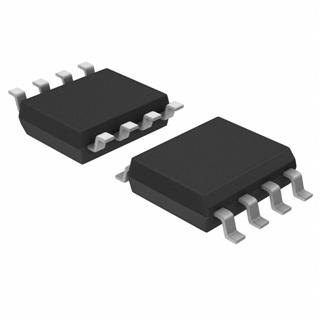

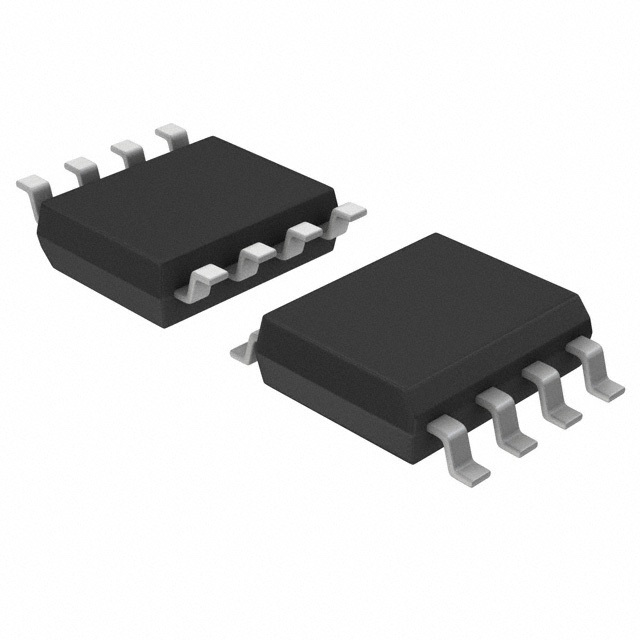

LM393AD. 8-SOIC, Low Power Dual Voltage Comparator, ±18 or 36 V, 710 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.12~0.13 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.12~0.13

PartNumber:: LM393AD

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:LM393AD
US $0.12 - 0.13
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM393AD is a low voltage comparator which is designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. The LM393AD also has a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage.

Parametrics

LM393AD absolute maximum ratings: (1)VCC Supply Voltage: ±18 or 36 V; (2)Vid Differential Input Voltage: ±36 V; (3)Vi Input Voltage: -0.3 to +36 V; (4)Output Short-circuit to Ground - note: Infinite; (5)Pd Power Dissipation: 710 mW; (6)Rthja: 175℃/W for SO-8 package; (7)Tstg Storage Temperature Range: -65 to +150℃.

Features

LM393AD features: (1)Wide single-supply voltage range or dual supplies: +2V to +36V or ±1V to ±18V; (2)Very low supply current (0.4mA) independent of supply voltage (1mW/comparator at +5V); (3)Low input bias current: 25nA typ.; (4)Low input offset current: ±5nA typ.; (5)Low input offset voltage: ±1mV typ.; (6)Input common-mode voltage range includes ground; (7)Low output saturation voltage: 250mV typ. (Io = 4mA); (8)Differential input voltage range equal to the supply voltage; (9)TTL, DTL, ECL, MOS, CMOS compatible outputs.
