Product Summary
The LM431CCZ is a 3-terminal adjustable shunt regulator with guaranteed temperature stability over the entire temperature range of operation. The LM431CCZ is now available in a chip sized package (4-Bump micro SMD) using National’s micro SMD package technology. The output voltage may be set at any level greater than 2.5V (VREF) up to 36V merely by selecting two external resistors that act as a voltage divided network. Due to the sharp turn-on characteristics, the LM431CCZ is an excellent replacement for many zener diode applications.
Parametrics
LM431CCZ absolute maximum ratings: (1)Storage Temperature Range: -65℃ to +150℃; (2)Operating Temperature Range Commercial: 0℃ to +70℃; (3)Soldering Information Infrared or Convection (20 sec.): 235℃; (4)Wave Soldering (10 sec.): 260℃ (lead temp.); (5)Cathode Voltage: 37V; (6)Continuous Cathode Current: 10 mA to +150 mA; (7)Reference Voltage: -0.5V; (8)Reference Input Current: 10 mA; (9)Internal Power Dissipation: 0.78W.
Features
LM431CCZ features: (1)Average temperature coefficient 50 ppm/℃; (2)Temperature compensated for operation over the full temperature range; (3)Programmable output voltage; (4)Fast turn-on response; (5)Low output noise; (6)in micro SMD package; (7)See AN-1112 for micro SMD considerations.

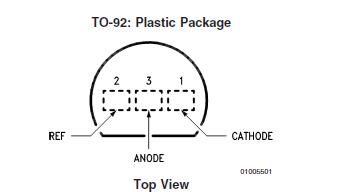

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

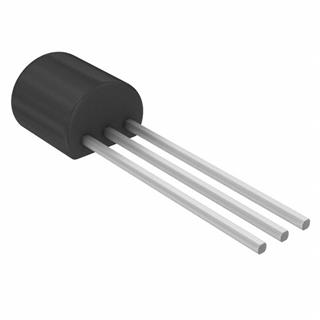

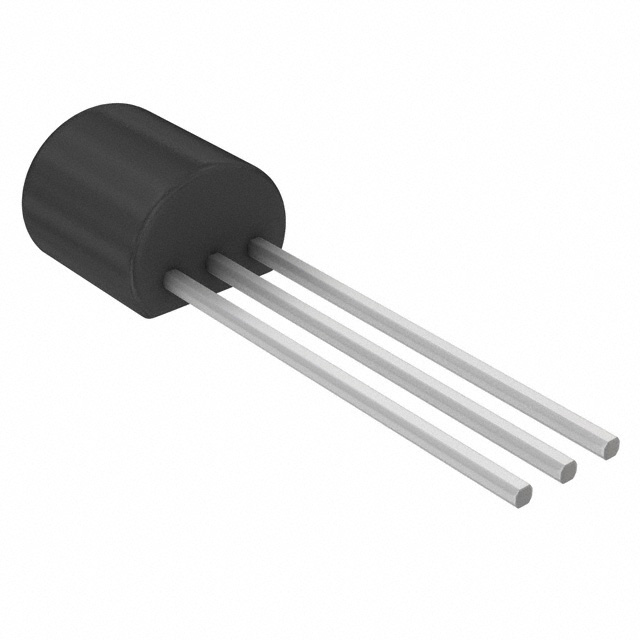

 LM431CCZ |
Fairchild Semiconductor |
Voltage & Current References Shunt Regulator 2.5V Programmable |
Data Sheet |
|
|
||||||||||||
|
LM431CCZ/NOPB |
National Semiconductor (TI) |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM431CCZX |
Fairchild Semiconductor |
Voltage & Current References Shunt Regulator 2.5V Programmable |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM431CCZXA |
Fairchild Semiconductor |
Voltage & Current References Adjustable/2.5V 0.5% Tolerance Shunt |
Data Sheet |
Negotiable |
|
||||||||||||
