Product Summary
The LM567CN is a general purpose tone decoder, designed to provide a saturated transistor switch to ground when an input signal is present within the passband. The LM567CN consists of an I and Q detector driven by a voltage controlled oscillator which determines the center frequency of the decoder. External components are used to independently set center frequency, bandwidth and output delay. The applications of the LM567CN include Touch tone decoding, Precision oscillator, Frequency monitoring and control, Wide band FSK demodulation, Ultrasonic controls, Carrier current remote controls, Communications paging decoders.
Parametrics
LM567CN absolute maximum ratings: (1)Supply Voltage Pin: 9V; (2)Power Dissipation: 1100mW; (3)V8: 15V; (4)V3: -10V; (5)V3: V4 + 0.5V; (6)Storage Temperature Range: -65℃ to +150℃; (7)Operating Temperature Range: 0℃ to +70℃; (8)Soldering Information: Dual-In-Line Package Soldering (10 sec.): 260℃; (9) Small Outline Package, Vapor Phase (60 sec.): 215℃; Infrared (15 sec.): 220℃.
Features
LM567CN features: (1)20 to 1 frequency range with a external resistor; (2)Logic compatible output with 100mA current sinking capability; (3)Bandwidth adjustable from 0 to 14%; (4)High rejectioof out of band signals and noise; (5)Immunity to false signals; (6)Highly stable center frequency; (7)Center frequency adjustable from 0.01 Hz to 500 kHz.

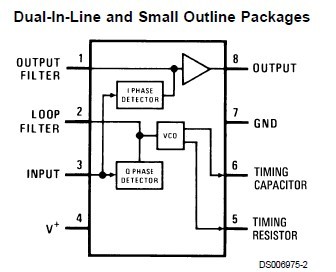

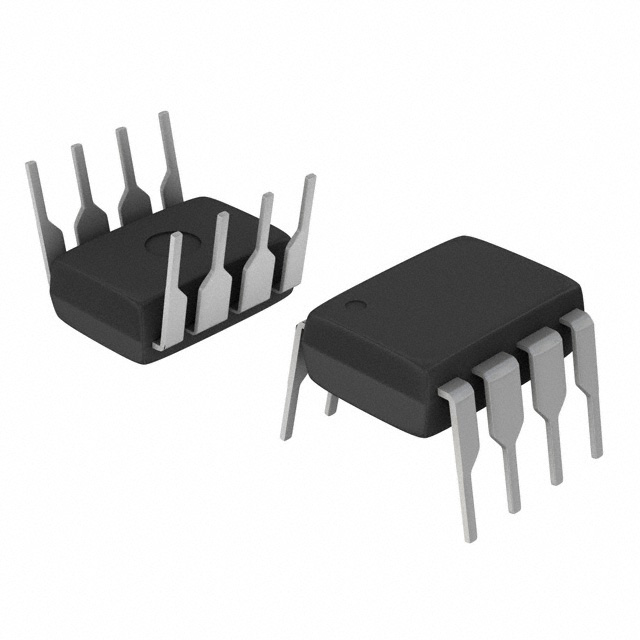

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM567CN |
National Semiconductor (TI) |
RF Receiver |
Data Sheet |
|
|
||||||||||||
|
LM567CN/NOPB |
National Semiconductor (TI) |
Telephone Ringers Tone Decoder |
Data Sheet |
|
|
||||||||||||
