LM61BIM3

LM61BIM3, SOT23-3, precision integrated-circuit temperature sensor, +12V to -0.2V, 10 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~0.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~0.25

PartNumber:: LM61BIM3

Brand:: National Semiconductor - NS | Pack: SOT | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:LM61BIM3
US $0.15 - 0.25
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

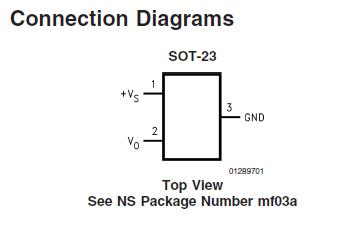

Product Summary

The LM61BIM3 is a precision integrated-circuit temperature sensor that can sense a -30℃ to +100℃ temperature range while operating from a single +2.7V supply. The LM61BIM3’s output voltage is linearly proportional to Celsius (Centigrade) temperature (+10 mV/℃) and has a DC offset of +600 mV. The offset allows reading negative temperatures without the need for a negative supply. The nominal output voltage of the LM61BIM3 ranges from +300 mV to +1600 mV for a -30℃ to +100℃ temperature range. The LM61BIM3 is calibrated to provide accuracies of ±2.0℃ at room temperature and ±3℃ over the full -25℃ to +85℃ temperature range. Its linear output, +600 mV offset, and factory calibration simplify external circuitry required in a single supply environment where reading negative temperatures is required. Because the LM61BIM3’s quiescent current is less than 125 μA, self-heating is limited to a very low 0.2℃ in still air. Shutdown capability is intrinsic because its inherent low power consumption allows it to be powered directly from the output of many logic gates.

Parametrics

LM61BIM3 absolute maximum ratings: (1)Supply Voltage: +12V to -0.2V; (2)Output Voltage: (+VS + 0.6V) to -0.6V; (3)Output Current: 10 mA; (4)Input Current at any pin: 5 mA; (5)Storage Temperature: 65℃ to +150℃; (6)Maximum Junction Temperature (TJMAX): +125℃; (7)ESD Susceptibility: Human Body Model 2500V, Machine Model 250V.

Features

LM61BIM3 features: (1)Calibrated linear scale factor of +10 mV/℃; (2)Rated for full -30℃ to +100℃ range; (3)Suitable for remote applications; (4)UL Recognized Component.
