Product Summary
The LMV358MX is a low voltage (2.7–5.5V) version of the dual and quad commodity op amps which currently operate at 5–30V. The LMV358MX is the most cost effective solutions for the applications where low voltage operation, space saving and low price are needed. They offer specifications that meet or exceed the familiar LMV358MX . The LMV358MX has rail-to-rail output swing capability and the input common-mode voltage range includes ground. It exhibits excellent speed-power ratio, achieving 1MHz of bandwidth and 1V/μs of slew rate with low supply current. The applications of the LMV358MX are: Active Filters; General Purpose Low Voltage Applications; General Purpose Portable Devices
Parametrics
LMV358MX absolute maximum ratings: (1)Differential Input Voltage ± Supply Voltage; (2)Supply Voltage (V+–V) 5.5V; (3)Infrared or Convection (20 sec) 235℃; (4)Storage Temp Range -65℃ to 150℃; (5)Junction Temperature(Note 5) 150℃; (6)Machine Model 100V; (7)Human Body Model: 2000V.
Features
LMV358MX features: (1)Guaranteed 2.7V and 5V Performance; (2)No Crossover Distortion; (3)Space Saving Package SC70-5 2.0x2.1x1.0mm; (4)Industrial Temp Range -40℃ to +85℃; (5)Gain-Bandwidth Product 1MHz; (6)Rail-to-Rail Output Swing @ 10kΩ V+ -10mV; V- +65mV; (7)VCM -0.2V to V+-0.8V.

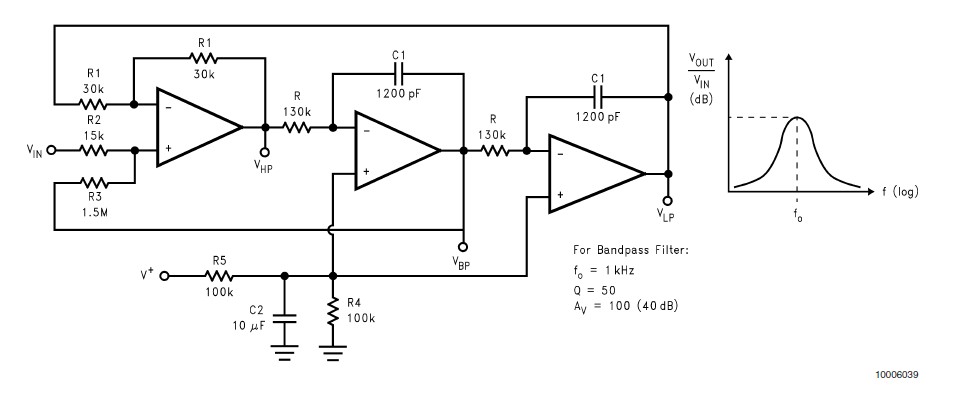

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

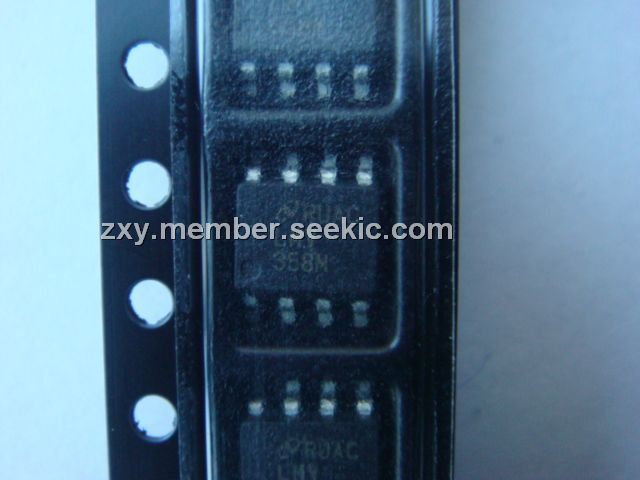

 LMV358MX |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
 |
LMV358MX/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps Low Volt S08 Dual Op Amp |
Data Sheet |
|
|
||||||||||||
