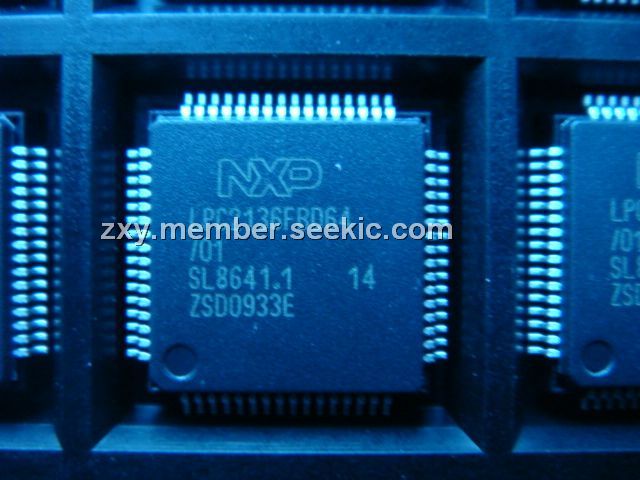

LPC2136FBD64

microcontroller, QFP, 1.5W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~3.00

PartNumber:: LPC2136FBD64

Brand:: NXP Semiconductors - nxp | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-24

From Other Seller

Part Number:LPC2136FBD64
US $2.00 - 3.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

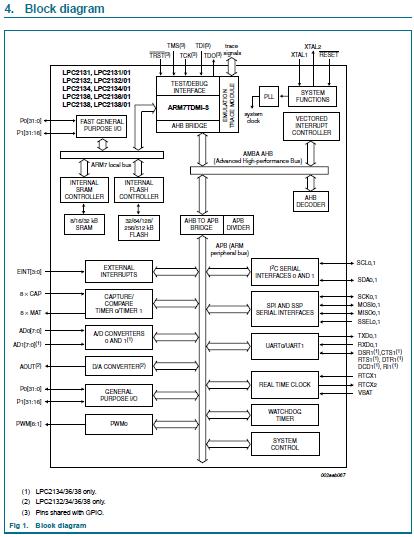

The LPC2136FBD64 is a microcontroller. The LPC2136FBD64 is based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, that combine the microcontroller with 32 kB, 64 kB, 128 kB, 256 kB and 512 kB of embedded high-speed flash memory. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at maximum clock rate. For critical code size applications, the LPC2136FBD64 alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty.

Parametrics

LPC2136FBD64 absolute maximum ratings: (1)VDD, supply voltage (core and external rail): -0.5 to +3.6 V; (2)VDDA, analog 3.3 V pad supply voltage: -0.5 to +4.6 V; (3)Vi(VBAT), input voltage on pin VBAT for the RTC: -0.5 to +4.6 V; (4)Vi(VREF), input voltage on pin VREF: -0.5 to +4.6 V; (5)VIA, analog input voltage on ADC related pins: -0.5 to +5.1 V; (6)VI, input voltage : -0.5 to +6.0 V; (7)IDD, supply current per supply pin: 100 mA max; (8)ISS, ground current per ground pin: 100 mA max; (9)Tstg, storage temperature: -40 to +125℃; (10)Ptot(pack), total power dissipation (per package): 1.5 W max; (11)VESD, electrostatic discharge voltage: -4000 to +4000 V.

Features

LPC2136FBD64 features: (1)Fast GPIO ports enable port pin toggling up to 3.5 times faster than the original LPC213x. They also allow for a port pin to be read at any time regardless of its function; (2)Dedicated result registers for ADC(s) reduce interrupt overhead; (3)UART0/1 include fractional baud rate generator, auto-bauding capabilities and handshake flow-control fully implemented in hardware; (4)Additional BOD control enables further reduction of power consumption.
