Product Summary
The LT5534ESC6 is a 50MHz to 3GHz monolithic RF power detector capable of measuring RF signals over a 60dB dynamic range. The RF signal in a decibel scale is precisely converted into DC voltage on a linear scale. The 60dB input dynamic range is achieved using cascaded RF detectors and RF limiters. Their outputs are summed to generate an accurate log-linear DC voltage proportional to the input RF signal in dB. The output is buffered with a low output impedance driver. The LT5534ESC6 delivers superior temperature stability (typical output variation within ±1dB over the full temperature range). The output responds in less than 40ns to a large RF input signal.
Parametrics
LT5534ESC6 absolute maximum ratings: (1)Power Supply Voltage: 5.5V; (2)Enable Voltage: 0V, VCC; (3)RF Voltage (+10dBm Equivalent): ±1V; (4)Operating Ambient Temperature Range: – 40℃ to 85℃; (5)Storage Temperature Range: –65℃ to 125℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT5534ESC6 features: (1)RF Frequency Range: 50MHz to 3GHz; (2)Linear Dynamic Range: 60dB; (3)Exceptional Accuracy over Temperature and Power Supply; (4)Fast Transient Response: 38ns Full-Scale Settling Time; (5)Single 2.7V to 5.25V Supply; (6)Low Supply Current: 7mA; (7)ShutdowCurrent: 0.1mA; (8)Tiny 6-Lead SC70 Package.

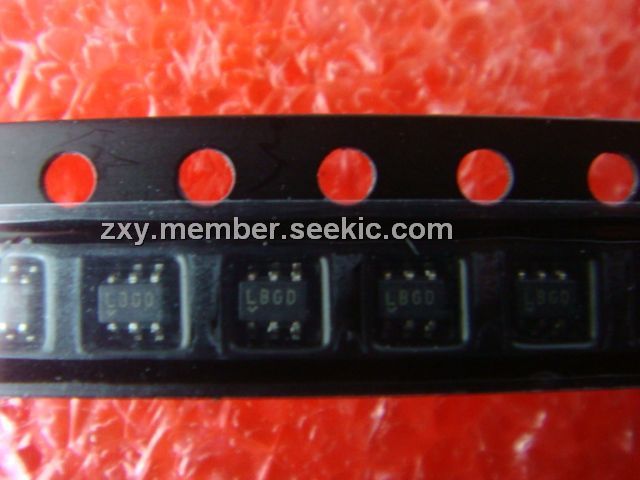

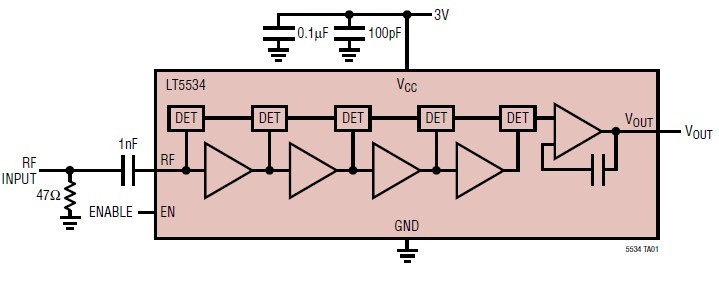

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT5534ESC6#TR |
|
IC DETECTOR RF PWR 3GHZ SC70-6 |
Data Sheet |
|
|
||||||||||
|
LT5534ESC6#TRM |
|
IC DETECTOR RF PWR 3GHZ SC70-6 |
Data Sheet |
|
|
||||||||||
|
LT5534ESC6#TRMPBF |
|
IC DETECTOR RF PWR 3GHZ SC70-6 |
Data Sheet |
|
|
||||||||||
|
LT5534ESC6#TRPBF |
|
IC DETECTOR RF PWR 3GHZ SC70-6 |
Data Sheet |
|
|
||||||||||
