Product Summary
The LTC2051HVCS8 is a dual zero-drift operational amplifier available in the MS8 and SO-8 packages. It operates from a single 2.7V supply while still supporting ±5V applications. The power consumption is 750mA per op amp. The applications of the LTC2051HVCS8 include Thermocouple Amplifiers, Electronic Scales, Medical Instrumentation, Strain Gauge Amplifiers, High Resolution Data Acquisition, DC Accurate RC Active Filters.
Parametrics
LTC2051HVCS8 absolute maximum ratings: (1)Total Supply Voltage (V+ to V –): 12V; (2)Input Voltage: (V + + 0.3V) to (V – – 0.3V); (3)Output Short-Circuit Duration: Indefinite; (4)Operating Temperature Range: –40℃ to 85℃; (5)Specified Temperature Range: –40℃ to 85℃; (6)Storage Temperature Range: – 65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC2051HVCS8 features: (1)Maximum Offset Voltage of 3mV; (2)Maximum Offset Voltage Drift of 30nV/℃; (3)Small Footprint, Low Profile MS8 Package; (4)Noise: 1.5mVP-P (0.1Hz to 10Hz Typ); (5)Voltage Gain: 140dB (Typ); (6)PSRR: 130dB (Typ); (7)CMRR: 130dB (Typ); (8)Supply Current: 0.75mA (Typ) per Amplifier; (9)Single Supply Operation: 2.7V to 11V; (10)Extended Common Mode Input Range; (11)Output Swings Rail-to-Rail; (12)Overload Recovery Time: 2ms (Typ); (13)Operating Temperature Range –40℃ to 85℃.

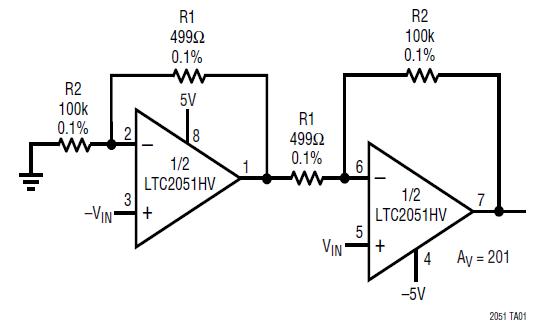

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC2051HVCS8 |
|
IC OPAMP ZERO DRFT DUAL HV 8SOIC |
Data Sheet |
|
|
||||||||||
|
LTC2051HVCS8#PBF |
|
IC OP-AMP ZERO-DRIFT DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LTC2051HVCS8#TR |
|
IC OPAMP ZERO DRFT DUAL HV 8SOIC |
Data Sheet |
|
|
||||||||||
|
LTC2051HVCS8#TRPBF |
|
IC OP-AMP ZERO-DRIFT DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||
