Product Summary

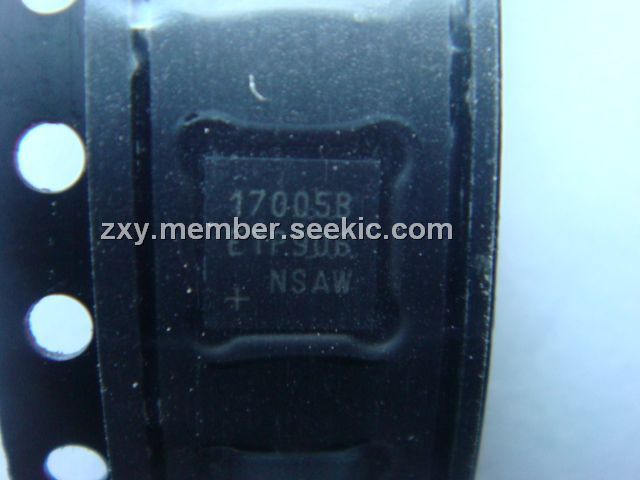

The MAX17005BETP is a high-frequency multichemistry battery charger. The circuit features a new high-frequency current-mode architecture that significantly reduces component size and cost. The MAX17005BETP uses a high-side MOSFET with n-channel synchronous rectifier. Widely adjustable charge current, charge voltage, and input current limit simplify the construction of highly accurate and efficient charger. The charge voltage and charge current are set with analog control inputs. The charge current setting can also be adjusted with a PWM input. High-accuracy current-sense amplifiers provide fast cycle-by-cycle current-mode control to protect against short circuits to the battery and respond quickly to system load transients. In addition, the MAX17005BETP provides a high-accuracy analog output that is proportional to the adapter current. In the MAX17015B, this current monitor remains active when the adapter is absent to monitor battery discharge current.

Parametrics

MAX17005BETP absolute maximum ratings: (1)DCIN, CSSP, CSSN, BATT, CSIN, CSIP, ACOK, LX to AGND: -0.3V to +30V; (2)BST to LDO: -0.3V to +30V; (3)CSIP to CSIN, CSSP to CSSN: -0.3V to +0.3V; (4)IINP, FB, ACIN, CC to AGND: -0.3V to (VAA + 0.3V); (5)VAA, LDO, ISET, VCTL to AGND: -0.3V to +6V; (6)DHI to LX: -0.3V to (VBST + 0.3V); (7)BST to LX: -0.3V to +6V; (8)DLO to PGND: -0.3V to (VLDO + 0.3V); (9)PGND to AGND: -0.3V to +0.3V; (10)Continuous Power Dissipation (TA = +70℃), 16-Pin TQFN (derate 16.9mW/℃ above +70℃): 1349.1mW; (11)Operating Temperature Range: -40℃ to +85℃; (12)Junction Temperature: +150℃; (13)Storage Temperature Range: -60℃ to +150℃; (14)Lead Temperature (soldering, 10s): +300℃.

Features

MAX17005BETP features: (1)High Switching Frequency (1.2MHz); (2)Controlled Inductor Current-Ripple Architecture: Reduced BOM Cost; Small Inductor and Output Capacitors; (3)±0.4% Accurate Charge Voltage; (4)±2.5% Accurate Input-Current Limiting; (5)±3% Accurate Charge Current; (6)Single-Point Compensation; (7)Monitor Outputs for ±2.5% Accurate Input Current Limit; AC Adapter Detection; (8)Analog/PWM Adjustable Charge-Current Setting; (9)Battery Voltage Adjustable for 3 and 4 Cells; (10)Adjustable Battery Voltage (4.2V to 4.4V/Cell); (11)Programmable Charge Current < 5A; (12)Automatic System Power Source Selection with n-Channel MOSFET; (13)Internal Boost Diode; (14)+8V to +26V Input Voltage Range.

Diagrams

MAX17005BETP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX17005BETP+
MAX17005BETP+

Maxim Integrated Products

Battery Management 1.2MHz High-Perf Charger

Data Sheet

0-1: $10.19
1-25: $6.79
25-50: $6.53
50-100: $4.62
MAX17005BETP+T
MAX17005BETP+T

Maxim Integrated Products

Battery Management 1.2MHz High-Perf Charger

Data Sheet

0-1942: $4.43
1942-2500: $4.43
