Product Summary

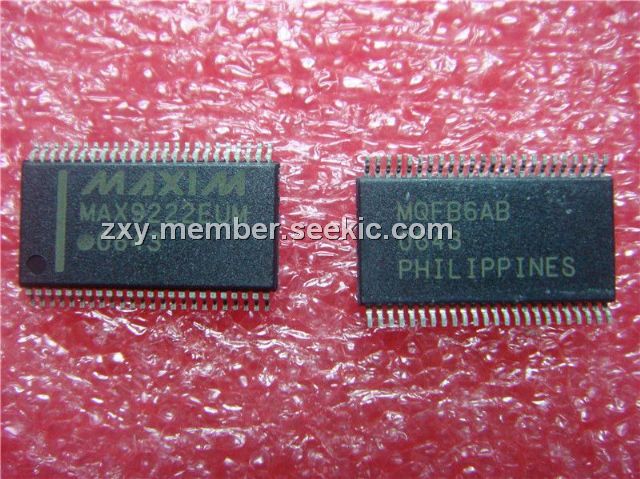

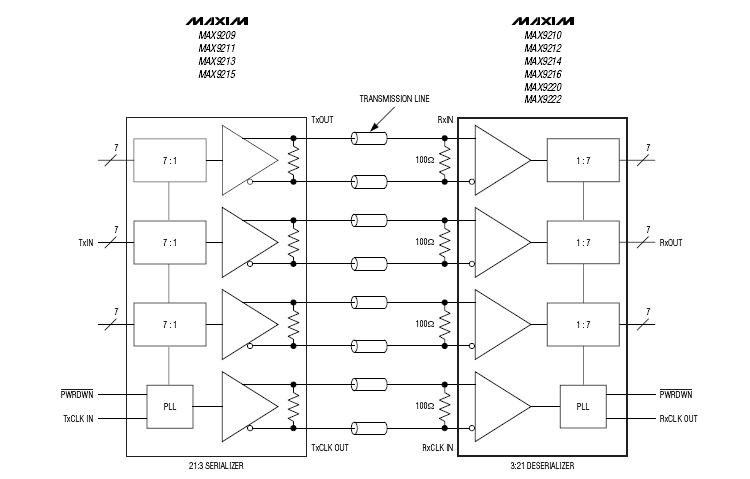

The MAX9222EUM is a 21-Bit Deserializer. It deserializes three LVDS serial data inputs into 21 single-ended LVCMOS/LVTTL outputs. A parallel rate LVDS clock received with the LVDS data streams provides timing for deserialization. The outputs have a separate supply, allowing 1.8V to 5V output logic levels. The applications of the MAX9222EUM include Automotive Navigation Systems, Automotive DVD Entertainment Systems, Digital Copiers, and Laser Printers.
Parametrics
MAX9222EUM absolute maximum ratings: (1)VCC to GND: -0.5V to +4.0V; (2)VCCO to GND: -0.5V to +6.0V; (3)RxIN_, RxCLK IN_ to GND: -0.5V to +4.0V; (4)PWRDWN to GND: -0.5V to +6.0V; (5)DCB/NC to GND: -0.5V to (VCC + 0.5V); (6)RxOUT_, RxCLK OUT to GND: -0.5V to (VCCO + 0.5V); (7)Continuous Power Dissipation (TA = +70℃): 1282mW; (8)Storage Temperature Range: -65℃ to +150℃; (9)Junction Temperature: +150℃; (10)Lead Temperature (soldering, 10s): +300℃.
Features
MAX9222EUM features: (1)Programmable DC Balance or Non-DC Balance; (2)DC Balance Allows AC-Coupling for Wider Input Common-Mode Voltage Range; (3)As Low as 8MHz Operation (MAX9210/MAX9212/MAX9220); (4)Falling-Edge Output Strobe (MAX9220/MAX9222); (5)Slower Output Transitions for Reduced EMI (MAX9210/MAX9212/MAX9220); (6)High-Impedance Outputs when PWRDWN is Low Allow Output Busing; (7)Pin Compatible with DS90CR216A/DS90CR218A (MAX9210/MAX9212/MAX9214/MAX9216); (8)Fail-Safe Inputs in Non-DC-Balanced Mode; (9)5V Tolerant PWRDWN Input; (10)PLL Requires No External Components; (11)Up to 1.785Gbps Throughput; (12)Separate Output Supply Pins Allow Interface to 1.8V, 2.5V, 3.3V, and 5V Logic; (13)LVDS Inputs Meet IEC 61000-4-2 Level 4 ESD Requirements; (14)LVDS Inputs Conform to ANSI TIA/EIA-644 LVDS Standard; (15)Low-Profile 48-Lead TSSOP and Space-Saving QFN Packages; (16)+3.3V Main Power Supply; (17)-40℃ to +85℃ Operating Temperature Range.
