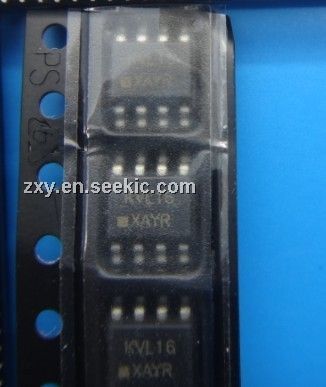

Product Summary

The MC100LVEL16D is a differential receiver. The device is functionally equivalent to the EL16 device, operating from a 3.3 V supply. The MC100LVEL16D exhibits a wider VIHCMR range than its EL16 counterpart. With output transition times and propagation delays<br />
comparable to the EL16, the MC100LVEL16D is ideally suited for interfacing with high frequency sources at 3.3 V supplies. Under open input conditions, the Q input will be pulled down to VEE and the Q input will be biased to VCC/2. This condition will force the<br />
Q output low.

Parametrics

MC100LVEL16D absolute maximum ratings: (1)PECL Mode Power Supply: 8 to 0 V; (2)VEE NECL Mode Power Supply: -8 to 0 V; (3)VI PECL Mode Input Voltage: 6 to 0; (4)NECL Mode Input Voltage: -6 to 0; (5)Output Current-Continuous: 50mA; (6)Output Current-Surge: 100mA; (7)VBB Sink/Source: ± 0.5 mA; (8)Operating Temperature Range: -40 to +85℃; (9)Storage Temperature Range: -65 to +150℃; (10)Wave Solder-Pb: 265℃; (11)Wave Solder-Pb-Free: 265℃.

Features

MC100LVEL16D features: (1)300 ps Propagation Delay; (2)High Bandwidth Output Transitions; (3)The 100 Series Contains Temperature Compensation; (4)ECL Mode Operating Range; (5)NECL Mode Operating Range; (6)Internal Input Pulldown Resistors on D, Pullup and Pulldown Resistors on D; (7)Q Output will Default LOW with Inputs Open or at VEE; (8)Pb-Free Packages are Available.

Diagrams

MC100LVEL16D Logic Diagram and Pinout Assignment

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC100LVEL16D
MC100LVEL16D
ON Semiconductor
Bus Receivers 3.3V ECL Diff
Data Sheet
Negotiable
MC100LVEL16DG
MC100LVEL16DG
ON Semiconductor
Bus Receivers 3.3V ECL Diff
Data Sheet
0-1: $3.75
1-25: $3.07
25-100: $2.77
100-500: $2.32
MC100LVEL16DTG
MC100LVEL16DTG
ON Semiconductor
Bus Receivers 3.3V ECL Diff
Data Sheet
0-1: $3.51
1-25: $3.15
25-100: $2.73
100-500: $2.03
MC100LVEL16DR2G
MC100LVEL16DR2G
ON Semiconductor
Bus Receivers 3.3V ECL Diff
Data Sheet
0-1855: $2.02
1855-2000: $1.95
2000-2500: $1.95
MC100LVEL16DR2
MC100LVEL16DR2
ON Semiconductor
Bus Receivers 3.3V ECL Diff
Data Sheet
Negotiable
MC100LVEL16DT
MC100LVEL16DT
ON Semiconductor
Bus Receivers 3.3V ECL Diff
Data Sheet
Negotiable
MC100LVEL16DTR2G
MC100LVEL16DTR2G
ON Semiconductor
Bus Receivers 3.3V ECL Diff
Data Sheet
0-1855: $2.02
1855-2000: $1.95
2000-2500: $1.95
MC100LVEL16DTR2
MC100LVEL16DTR2
ON Semiconductor
Bus Receivers 3.3V ECL Diff
Data Sheet
Negotiable
