Product Summary

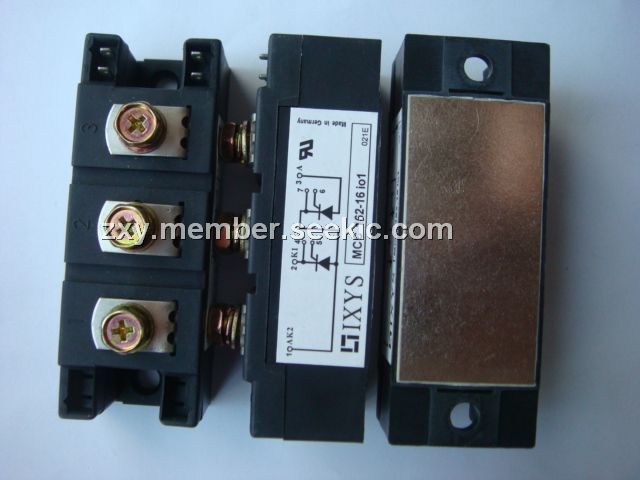

The MCC162-16IO1 is a thyristor module. Its applications are: motor control, power converter, heat and temperature control for industrial furnaces and chemical processes, lighting control, contactless switches.
Parametrics
MCC162-16IO1 absolute maximum ratings: (1)ITRMS, IFRMS: 300 A at TVJ = TVJM; (2)ITAVM, IFAVM: 190 A at TC = 80℃; 180° sine; 181 A at TC = 85℃ ; 180° sine; (3)ITSM, IFSM: 6000A at TVJ= 45℃; t = 10 ms (50 Hz), sine; 6400 A at VR=0 t =8.3 ms (60 Hz), sine; 5250 A at TVJ = TVJM t = 10 ms (50 Hz), sine; 5600A at VR=0 t = 8.3 ms (60 Hz), sine; (4)PGM: TVJ=TVJM tP=30μs IT= I
TAVM tP = 500μs; PGAV: 8W; (5)VRGM: 10 V; (6)TVJ: -40~+125℃; (7)TVJM: 125℃; Tstg: -40~+125℃; (8)VISOL:3000 V~ at 50/60 Hz, RMS t = 1 min; 3600 V~ at IISOL≤1 mA t = 1 s; (9)Weight: 125g at typical including screws.
Features
MCC162-16IO1 features: (1)International standard package; (2)Direct copper bonded Al2O3 -ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V~; (5)UL registered, E 72873; (6)Keyed gate/cathode twin pins.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

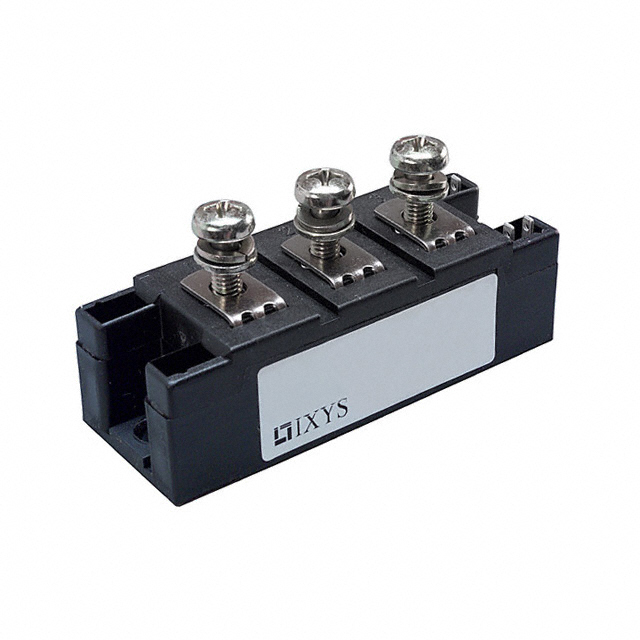

 MCC162-16io1 |
Ixys |
Discrete Semiconductor Modules 162 Amps 1600V |
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
MCC132 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
MCC132-08io1 |
Ixys |
Discrete Semiconductor Modules 132 Amps 800V |
Data Sheet |
Negotiable |
|
||||||
|
MCC132-12io1 |
Ixys |
Discrete Semiconductor Modules 132 Amps 1200V |
Data Sheet |
Negotiable |
|
||||||
 |
MCC132-14I01 |
|
THYRISTOR MODULE 1400V 2X130A |
Data Sheet |
|
|
||||||
|
MCC132-14io1 |
Ixys |
Discrete Semiconductor Modules 132 Amps 1400V |
Data Sheet |
Negotiable |
|
||||||
|
MCC132-16io1 |
Ixys |
Discrete Semiconductor Modules 132 Amps 1600V |
Data Sheet |
Negotiable |
|
||||||
